NOTE: PC Interfacing Cable is not provided with this module
We have Various sizes of Communication Modules. Check out our complete collection of Communication Modules.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |

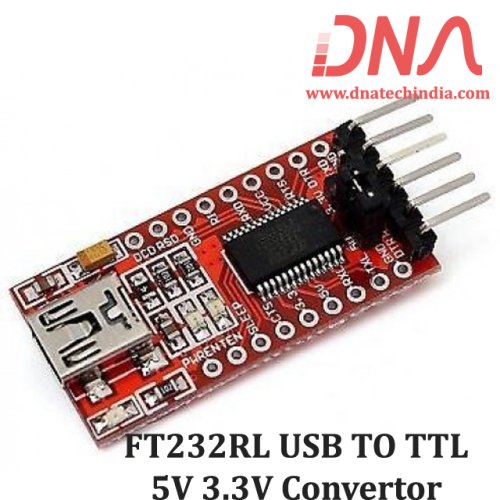

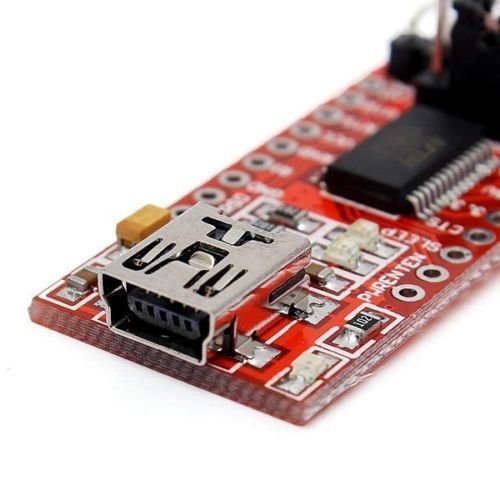

Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip. No USB specific firmware programming required.
Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration.
Fully integrated USB termination resistors.
Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
Data transfer rates from 300 baud to 3 Mbaud (RS422, RS485, RS232) at TTL levels.
128 byte receive buffer and 256 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
Material : PCB + Electronic Component
Support 3.3V, 5V
Main Color : Red
Chipset : FT232RL
USB power has over current protection, using 500MA self-restore fuse
RXD/TXD transceiver communication indicator
Pin definition : DTR,RXD,TX,VCC,CTS,GND
Pitch : 2.54mm
Module Size : About 36mm(length)*17.5mm(width)
See 4 Ratings & Reviews |
