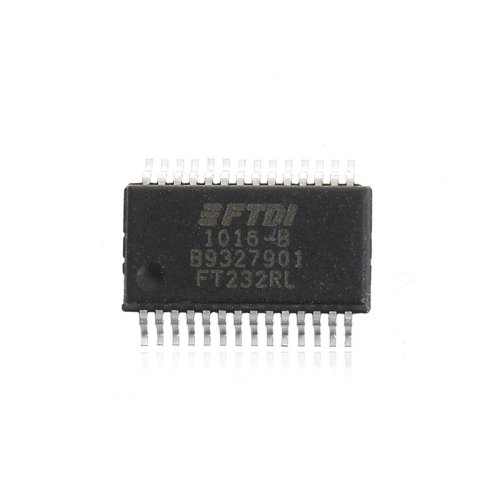

Want to convert TTL data into USB & vice versa? Well then this FT232 USB to serial converter IC is perfect for you.
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip. No USB specific firmware programming required.
Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration.
Fully integrated USB termination resistors.
Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
Data transfer rates from 300 baud to 3 Mbaud (RS422, RS485, RS232) at TTL levels.
128 byte receive buffer and 256 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
Unique USB FTDIChip-ID™ feature.
Configurable CBUS I/O pins.
Transmit and receive LED drive signals.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space /no parity
FIFO receives and transmits buffers for high data throughput.
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
Device supplied pre-programmed with unique USB serial number.
Supports bus powered, self-powered and highpower bus powered USB configurations.
Integrated +3.3V level converter for USB I/O.
Integrated level converter on UART and CBUS for interfacing to between +1.8V and +5V logic.
True 5V/3.3V/2.8V/1.8V CMOS drive output and TTL input.
USB to RS232/RS422/RS485 Converters
Upgrading Legacy Peripherals to USB
Cellular and Cordless Phone USB data transfer cables and interfaces
Interfacing MCU/PLD/FPGA based designs to USB
USB Audio and Low Bandwidth Video data transfer
PDA to USB data transfer
USB Smart Card Readers
USB Instrumentation
USB Industrial Control
USB MP3 Player Interface
USB FLASH Card Reader and Writers
Set Top Box PC - USB interface
USB Digital Camera Interface
USB Hardware Modems
USB Wireless Modems
USB Bar Code Readers
USB Software and Hardware Encryption Dongles
