FUSB302BMPX USB Interface IC 302B Type-C Controller

FUSB302BMPX USB Interface IC 302B Type-C Controller

The FUSB302 enables the USB Type-C detection including attach, and orientation. The FUSB302 integrates the physical layer of the USB BMC power delivery protocol to allow up to 100 W of power and role swap. The BMC PD block enables full support for alternative interfaces of the Type-C specification. The FUSB302 targets system designers looking to implement a DRP/SRC/SNK USB Type-C connector with low amount of programmability.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• Software configurable either as a dedicated host, dedicated device, or dual role.

1. Dedicated devices can operate both on a Type-C receptacle or a Type-C plug with a fixed CC and VCONN channel

• Dual-Role Functionality with Autonomous DRP Toggle

• Ability to connect as either a host or a device based on what has been attached.

• Integrates CCx to VCONN switch with over-current limiting for powering USB3.1 Full Featured cables

• Dead Battery Support (SNK Mode Support when No Power Applied)

• Full Type-C 1.1 Support. Integrates the following functionality of the CC pin

1. Attach/Detach Detection as Host
2. Current Capability Indication as Host
3. Current Capability Detection as Device
4. Audio Adapter Accessory Mode
5. Debug Accessory Mode
6. Active Cable Detection

• USB Power Delivery (PD) 2.0, Version 1.1 Support

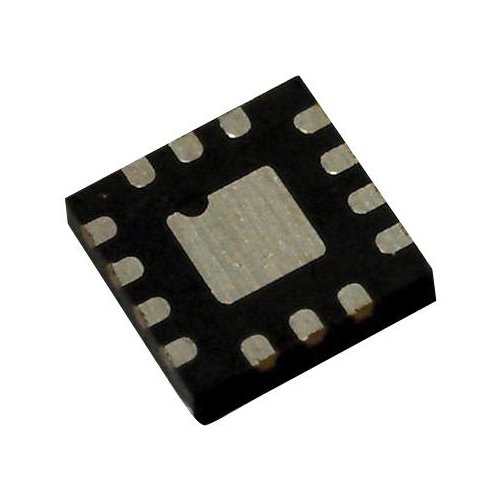

• Packaged in 9-Ball WLCSP (1.215 mm x 1.260 mm) and 14-lead MLP (2.5 mm x 2.5 mm,0.5 mm Pitch)

Applications of FUSB302BMPX USB Interface IC 302B Type-C Controller

• Laptops

• Notebooks

• Power Adapters

• Cameras

• Dongles

• Smartphones

• Tablets

Package Includes

1 x FUSB302BMPX USB Interface IC 302B Type-C Controller
