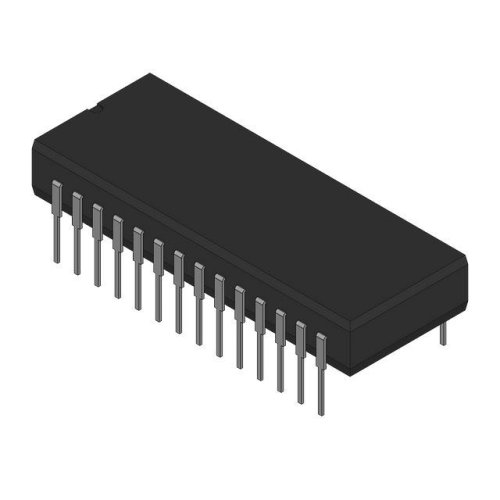

LATTICE GAL26V12C High Performance E2CMOS PLD IC

ICGAL26V12C, High Performance E2CMOS PLD with 7.5ns propagation delay, 12 macrocells, and reconfigurable logic.

The LATTICE GAL26V12C High Performance E2CMOS PLD IC offers unmatched speed and flexibility for your electronic designs. It features a maximum propagation delay of just 7.5ns and utilizes E2CMOS technology for faster electrical erasure under 100ms. With 12 configurable logic macrocells, this PLD allows for complex logic designs tailored to your needs.

Designed for high performance, the GAL26V12C ensures efficient programming with up to 1000 erase/write cycles. Its low power consumption of 90mA typical Icc makes it ideal for various applications. The device is fully compatible with other 26V12 devices, ensuring seamless integration into your projects.

Whether you're developing complex systems or simple logic functions, the LATTICE GAL26V12C High Performance E2CMOS PLD IC is your go-to solution. It is perfect for applications requiring high-speed processing and reliability, making it essential for modern electronic designs in India.

Explore a wide range of high-quality ICs at DNA. The LATTICE GAL26V12C is a standout in our Components & IC's category. Check other Components & IC's that we have in stock.

If you need specific electronic parts, DNA can help. We support retail and bulk orders and can import items if unavailable. Check out our related products like HMI Displays, Capacitors, Nextion Displays, Connectors, LCDs, and Digital ICs. Contact Us

Features of LATTICE GAL26V12C High Performance E2CMOS PLD IC

• 7.5 ns Maximum Propagation Delay
• Low Power Consumption of 90 mA
• Reconfigurable Logic with E2 Cell Technology
• High Speed Electrical Erasure (<100ms)
• Twelve Output Logic Macrocells for Design Flexibility
• 100% Functional Testability

Specification of LATTICE GAL26V12C High Performance E2CMOS PLD IC

• Electrically Erasable CMOS (E2CMOS)
• 12 macrocells for configurable logic
• 12 inputs
• Up to 12 programmable outputs
• 5V ±10% Operating Voltage
• Typically 165 mW Power Dissipation

Applications of LATTICE GAL26V12C High Performance E2CMOS PLD IC

• Complex Logic Design
• Reconfigurable Electronics
• High-Speed Processing Applications
• Embedded Systems
• Digital Circuit Design

Package Includes

• 1 X LATTICE GAL26V12C High Performance E2CMOS PLD IC
