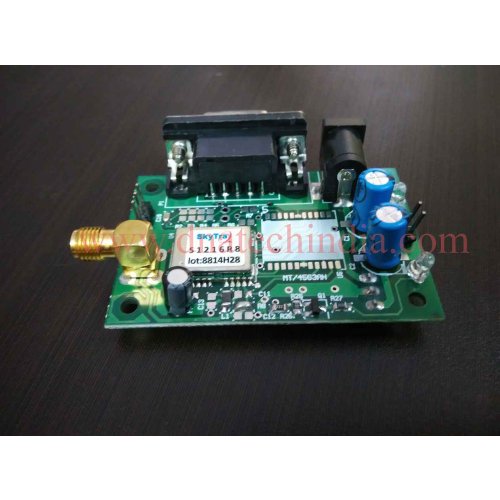

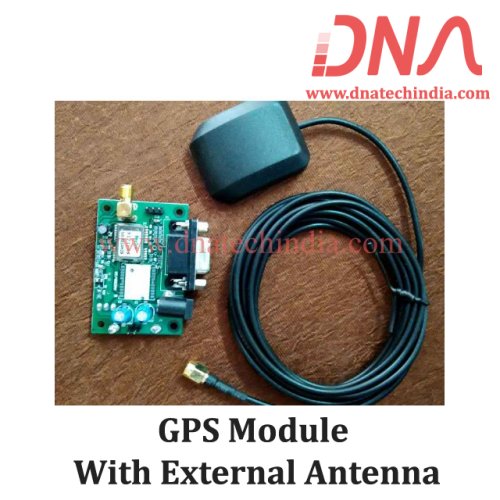

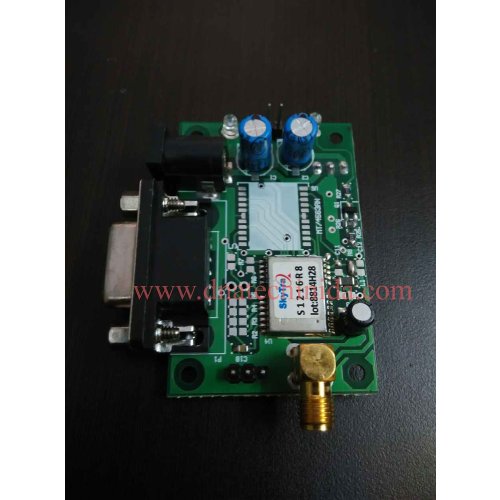

GPS Module With External Antenna

This is a GPS Module with External Antenna.

It is based on Skytra S1216 Module. This is a plug and play easy to use GPS Module with RS232 output. Just power up the module and it will start sending data serially in NMEA format.

Works on 9-12V DC supply and can be interfaced directly to PC via Serial Port. It can also be interfaced to any micro-controllers like 8051, PIC, AVR or ARM via MAX232 IC.

We have Various sizes of GPS-GSM Module. Check out our complete collection of GPS-GSM Module.

Features

• 167 Acquisition/Tracking Channels

• Support QZSS, WAAS, MSAS, EGNOS, GAGAN

• 16 million time-frequency hypothesis testing per sec

• -148dBm cold start sensitivity

• -165dBm tracking sensitivity

• 29 second cold start TTFF

• 3.5 second TTFF with AGPS

• 1 second hot start

• 2.5m CEP accuracy

• Multipath detection and suppression

• Jamming detection and mitigation

• 7-day extended ephemeris AGPS

• Contains LNA, SAW Filter, TCXO, RTC Xtal,Regulator

• Works with active and passive antenna

• On board active antenna short protection

• On board active antenna detection

• Complete receiver in 12.2mm x 16.0mm size

• Operating temperature -40 ~ +85ºC
