The chipset which is use in this module is HMC5883L

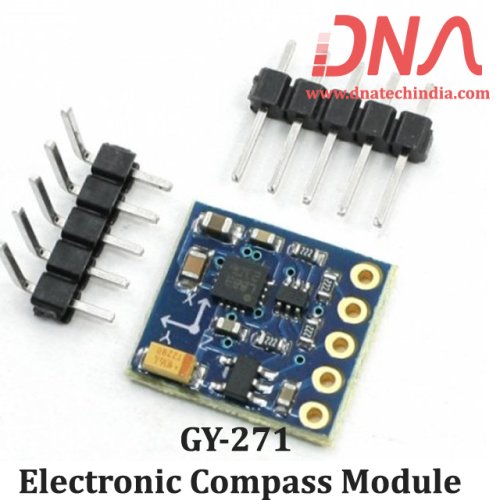

GY-271 Compass Module is designed for low-field magnetic sensing with a digital interface and perfect to give precise heading information. This compact sensor fits into small projects such as UAVs and robot navigation systems. The sensor converts any magnetic field to a differential voltage output on 3 axes. This voltage shift is the raw digital output value, which can then be used to calculate headings or sense magnetic fields coming from different directions.
We have Various sizes of HMI Modules. Check out our complete collection of HMI Modules.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Power 3V-5V DC
Chipset HMC5883L
Communication via I2C protocol
Measuring range : ± 1.3-8 Gauss
Dimensions 14.8 x 13.5 x 3.5mm
VCC : 3V-5V DC
GND : ground
SCL : analog input (A5)
SDA : analog input (A4)
Simple Compass - Arduino Nano + GY-271(HMC5883L) + mini-OLED
