H9730 Small Optical Encoder Module with Digital Output

HEDS-9730 Encoder Module for rotary or linear position detection with high resolution and TTL compatible output.

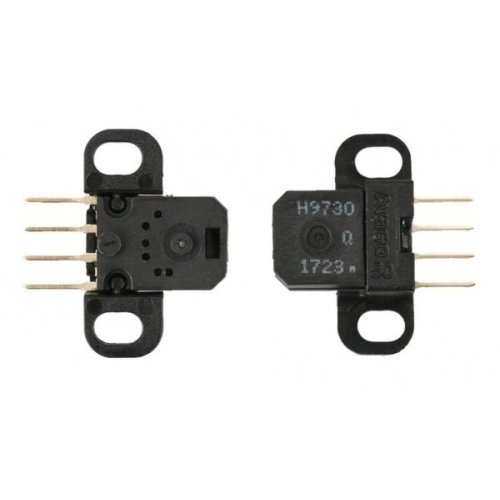

The HEDS-9730 Small Optical Encoder Module is ideal for precise rotary or linear position detection. This high-performance incremental encoder module operates seamlessly with a code wheel or code strip. Its compact design houses a lensed LED source and a photodetector IC, ensuring high accuracy and tolerance to misalignment. The HEDS-9730 provides two-channel digital outputs and operates on a 3.3V supply, making it suitable for various applications.

Engineered for reliability, the HEDS-9730 Small Optical Encoder Module features a lead-free package and is wave solderable. With a temperature range of -40°C to 85°C, it performs well in diverse environments. This encoder is TTL or 3.3V/5V CMOS compatible, ensuring easy integration into your projects.

Explore the versatility of the HEDS-9730 in industries such as robotics, automation, and motion control. Its small size and high resolution make it a preferred choice for engineers and hobbyists alike, enhancing your projects with accurate position feedback.

Discover the precision of Proximity, Distance and Motion Sensors at DNA. Explore the HEDS-9730 Small Optical Encoder Module and elevate your projects. Don’t miss out on our other products in the Proximity, Distance and Motion Sensor category. Check other "Proximity, Distance and Motion Sensor" that we have in stock.

At DNA, we cater to all your electronic component needs. If you can’t find specific parts, reach out to us. We can import items if they are unavailable. Explore our range including Inductors, Development Modules, and more. Contact Us.

Features of H9730 Small Optical Encoder Module with Digital Output

• Small Size
• High Resolution
• Two Channel Quadrature Output
• Linear and Rotary Applications
• No Signal Adjustment required
• TTL or 3.3V/5V CMOS Compatible
• Wave Solderable
• Lead-free Package
• -40°C to 85°C Operating Temperature

Specification of H9730 Small Optical Encoder Module with Digital Output

• Measurement Range: 0 – 5000 ppm
• Accuracy: ±30 ppm or ±3% of reading
• Sensor Type: NDIR
• Response Time (T90): <30 seconds
• Operating Voltage: 5V DC (typical)

Applications of H9730 Small Optical Encoder Module with Digital Output

• Robotics
• Automation
• Motion Control
• Position Feedback
• Industrial Equipment

Related Links for H9730 Small Optical Encoder Module with Digital Output

• Other Products from Proximity, Distance and Motion Sensor Category

Package Includes

• 1 X H9730 Small Optical Encoder Module with Digital Output
