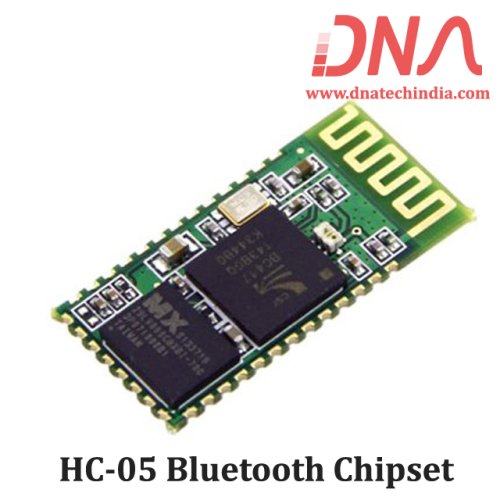

HC-05 Bluetooth Module Chipset

This is only the chipset not the HC05 Module with ttl interface.

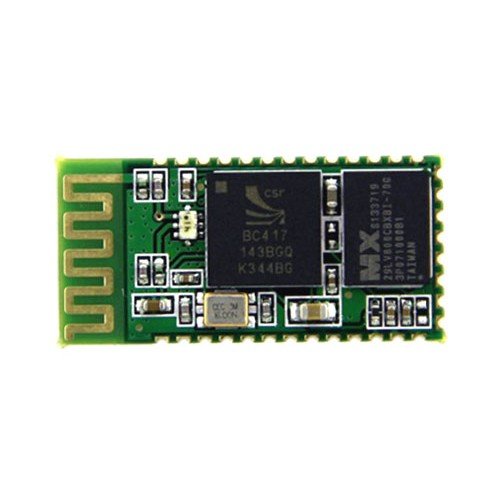

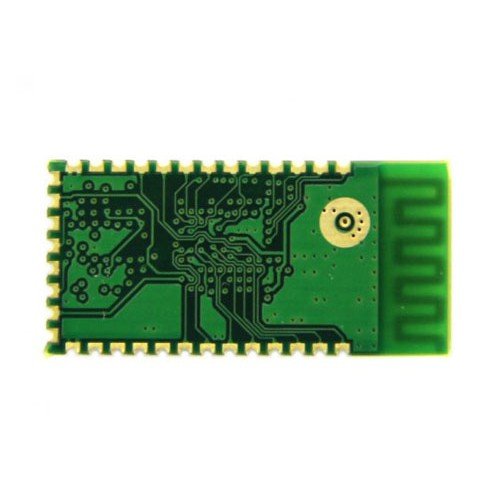

Bluetooth module (SMD) using chipsets BlueCore4 CSR. It has seven I / O ports, 8 Mbit flash memory for software storage and two modes of operation: via AT commands and transparently. In transparent mode it can be configured as Master, Slave or Loopback, and can connect to other devices that support SPP. In the AT command mode, the user can configure the module and send commands. By controlling the logic level of pin PIO11, the user can activate the work mode between AT command and transparent.

We have Various sizes of Communication Modules. Check out our complete collection of Communication Modules.

HC-05 Specification

• Bluetooth protocal : Bluetooth Specification v2.0+EDR

• Frequency : 2.4GHz ISM band

• Modulation : GFSK(Gaussian Frequency Shift Keying)

• Emission power : ≤4dBm, Class 2

• Sensitivity : ≤-84dBm at 0.1% BER

• Speed : Asynchronous : 2.1Mbps(Max) / 160 kbps, Synchronous : 1Mbps/1Mbps

• Security : Authentication and encryption

• Profiles : Bluetooth serial port

• Power supply : +3.3VDC 50mA

• Working temperature : -20 ~ +75Centigrade

• Dimension : 26.9mm x 13mm x 2.2 mm

Application:

• Computer and peripheral devices

• GPS receiver

• Industrial control

• MCU projects
