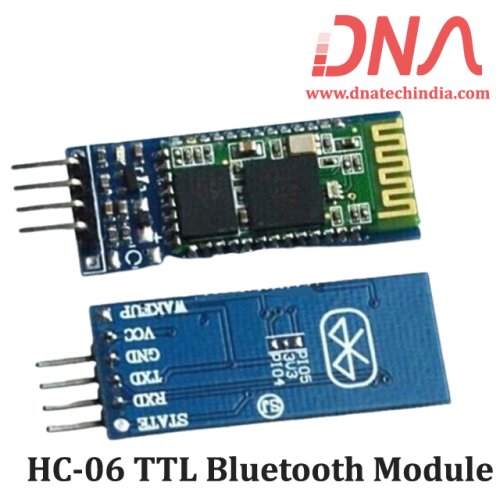

HC-06 TTL Bluetooth Module

HC-06 TTL Bluetooth Transceiver Module

This is a HC06 Bluetooth Serial Transceiver Module with Base Board and direct TTL interfacing with Arduino, Raspberry-pi or any other Micro-controller. The HC06 is a Serial port Bluetooth module which having fully qualified Bluetooth V2.0+EDR (Enhanced Data Rate) 3Mbps Modulation with complete 2.4GHz radio transceiver and baseband. It uses CSR Blue core 04‐External single chip Bluetooth system with CMOS technology and with AFH

We have Various sizes of Communication Modules. Check out our complete collection of Communication Modules.

Features HC-06 Bluetooth Module

• Typical ‐ 80dBm sensitivity.

• Up to +4dBm RF transmits power.

• Low Power 1.8V Operation, 3.3 to 5 V I/O.

• PIO control.

• UART interface with programmable baud rate.

• With integrated antenna.

• With edge connector.

• Slave default Baud rate : 9600, Data bits : 8, Stop bit : 1,Parity : No parity

• Auto‐connect to the last device on power as default.

• Permit pairing device to connect as default.

• Auto‐pairing PINCODE : ”1234” as default.

• Auto‐reconnect in 30 min when disconnected as a result of beyond the range of connection.

Application of HC-06 Bluetooth Transceiver Module

• It is used in Electronic projects.

• Bluetooth based Robotic projects using 8051/AVR/PIC/ARM/NXP/Infineon microcontroller.

• It is used in all types of wireless communication purposes.
