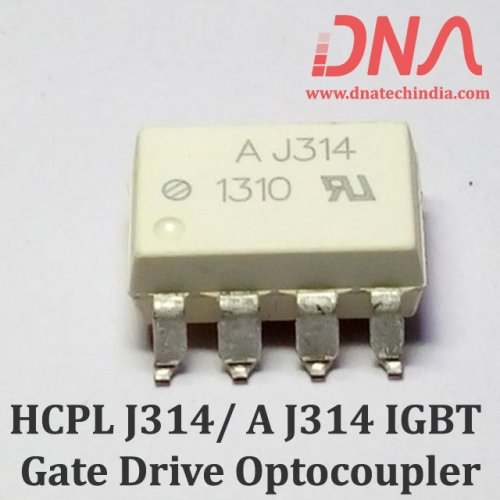

HCPL J314 IGBT Gate Drive Optocoupler Surface Mount

HCPL-J314 IGBT Gate Drive Optocoupler for driving power IGBTs and MOSFETs with high speed response and wide operating temperature range.

The HCPL J314 IGBT Gate Drive Optocoupler is designed for driving power IGBTs and MOSFETs in motor control applications. This optocoupler features a maximum output current of 0.6 A and a minimum of 0.4 A, ensuring efficient performance. With a high-speed response time of 0.7 µs, it meets the demands of industrial applications requiring rapid switching.

Explore our range of OptoCouplers & OptoIsolators at DNA. The HCPL brand provides reliable solutions for your electronic needs. Check other OptoCouplers & OptoIsolators that we have in stock.

If you need specific electronic components, reach out to us at DNA. We can import parts if they are not available. We support retail and bulk orders for items like Analog ICs, Development Boards, Microcontrollers, and more. Contact Us.

Features of HCPL J314 IGBT Gate Drive Optocoupler

• 0.6 A maximum peak output current
• 0.4 A minimum peak output current
• High speed response of 0.7 µs
• Ultra high CMR of 25 kV/µs
• Wide operating temperature range from -40°C to 100°C

Specification of HCPL J314 IGBT Gate Drive Optocoupler

• Bootstrappable supply current max. 3 mA
• Wide VCC operating range: 10 V to 30 V
• Safety approvals: UL Recognized, 3750 Vrms for 1 minute
• Available in DIP8 and SO16 packages

Applications of HCPL J314 IGBT Gate Drive Optocoupler

• Isolated IGBT/Power MOSFET gate drive
• AC and brushless DC motor drives
• Inverters for appliances
• Industrial inverters
• Uninterruptable Power Supplies (UPS)

Related Links for HCPL J314 IGBT Gate Drive Optocoupler Surface Mount

• Other Products from OptoCouplers & OptoIsolators Category

Package Includes

• 1 X HCPL J314 IGBT Gate Drive Optocoupler (Surface Mount)
