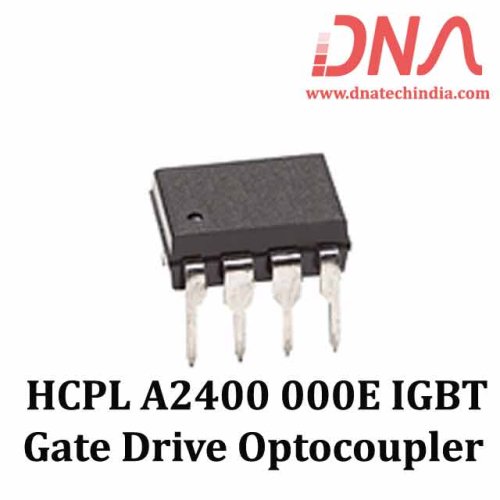

The HCPL IGBT Gate Drive Optocoupler offers a reliable solution for high-speed logic applications. It features an 820nm AlGaAs light emitting diode combined with a high-speed photodetector, ensuring minimal input current and high data rates. This device eliminates the need for pull-out resistors with its three-state output, making it ideal for direct data bus drives. The built-in Schmitt trigger provides logic-compatible waveforms, enhancing performance across various logic families including TTL and HCMOS.
With guaranteed electrical performance over the temperature range of 0 to 70°C, the HCPL IGBT Gate Drive Optocoupler is suitable for applications requiring isolation of high-speed logic systems, ground loop elimination, and pulse transformer replacements. Its high power supply noise immunity and 10kV/µs typical common mode rejection provide added reliability in demanding environments.
Explore the versatility of the HCPL IGBT Gate Drive Optocoupler for computers, networking, and signal processing. This component can streamline your projects by ensuring effective communication and performance in various electronic systems.
At DNA, we offer the reliable HCPL IGBT Gate Drive Optocoupler from a trusted brand in the OptoCouplers & OptoIsolators category. Explore our range of products to find the best fit for your needs. Check other "OptoCouplers & OptoIsolators" that we have in stock.
If you need other electronic components, DNA can help. We can import parts not in stock and support both retail and bulk orders. From capacitors to microcontrollers, reach out for any specific needs. Contact Us
