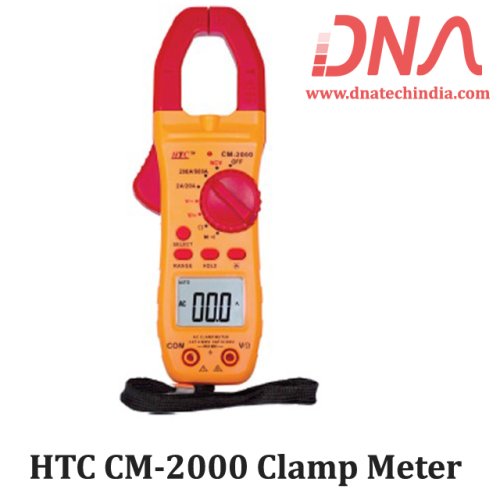

HTC CM-2000 Clamp Meter

This is 31/2 Digit highly stable clamp meter uses two AAA (1.5 Volt) batteries.

It has a LCD with 20mm digit display, which makes the reading clearer and the operation more convenient. It can test DCV, ACV, ACA, resistance, NCV, diode and continuity test. This meter also equips data hold function with unit symbol display, can work in both auto and manual range and provides auto power off, clamp light and warning functions. To assure high accuracy and resolution, it adopts an 8-bit microprocessor and dual integral A/D converter IC. It is an ideal tool for labs, factories radio-technology and household.

We have Various sizes of Misc Modules. Check out our complete collection of Misc Modules

Features of Clamp Meter

• 3 ½ Digits LCD Display

• Clamp Max Saw size : 35 mm

• Full function protection ,anti high voltage circuit design

• Data Hold

• Low Battery Indication

• Max. measuring capacitance

• Diode: Open Voltage : 1.5V, Test Current : 0.5mA

• Continuity: Buzzer Sound at less than 10W

• Standard Accessories : Test Leads, Manual, TP01 Temperature probe

• Dimensions : 230(H) x 80(W) x 37(D)mm

Technical Data of Clamp Meter

• Function Range Accuracy

• DCV 200mV/2V/20V/200V/500V +(1.0%+3)

• ACV 200mV/2V/20V/200V/500V +(1.5% +5)

• ACA 2A/20A/200A/400A +(2.0% +5)

• Resistance 200W/2kW/20kW/200kW/2MW/20MW +(1.0% +3)

• Temperature (-40～1000) oC +(0.8% +4)
