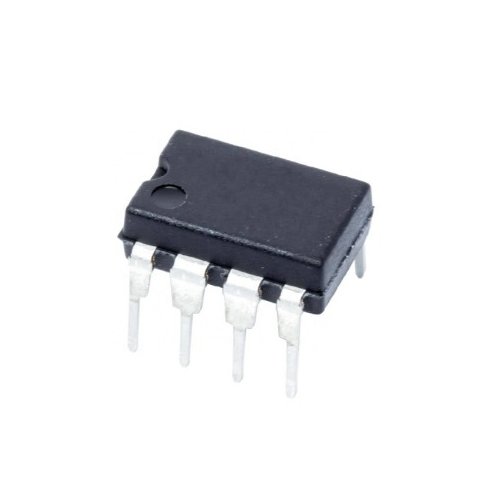

Based on Avia Semiconductor’s patented technology, HX710(A/B) is a precision 24-bit analog-to-digital converter (ADC) with built-in temperature sensor (HX710A) or DVDD, AVDD voltage difference detection.
It’s designed for weigh scales and industrial control applications to interface directly with a bridge sensor. The input low-noise amplifier (PGA) has a fixed gain of 128, corresponding to a full-scale differential input voltage of ±20mV, when a 5V reference voltage is connected to the VREF pin. On chip oscillator provides the system clock without any external component. On-chip poweron-reset circuitry simplifies digital interface initialization. There is no programming needed for the internal registers. All controls to the HX710 are through the pins.
On-chip temperature measurement (HX701A)
DVDD and AVDD supply voltage difference measurement (HX701B)
On-chip low noise amplifier with a gain of 128
On-chip oscillator requiring no external component
On-chip power-on-reset
Simple digital control and serial interface : pin-driven controls, no programming needed
Selectable 10SPS or 40SPS output data rate
Simultaneous 50 and 60Hz supply rejection
Current consumption:normal operation < 1.2mA, power down < 1uA
Operation supply voltage range : 2.6 ~ 5.5V
Operation temperature range : -40 ~ +85ć
8 pin SOP-8 package
