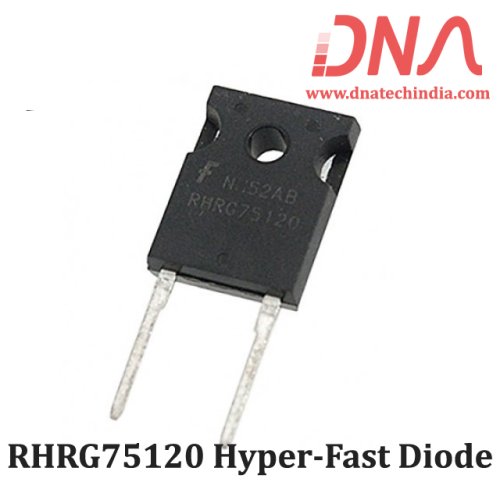

RHRG75120 Hyperfast Diode

The RHRG75120 is a hyperfast diode with soft recovery characteristics (trr < 85ns).

It has half the recovery time of ultrafast diodes and is silicon nitride passivated ion-implanted epitaxial planar construction. This device is intended for use as a freewheeling/clamping diode and rectifier in a variety of high frequency switching power supplies and other power switching applications. Its low stored charge and hyperfast soft recovery characteristic minimize ringing and electrical noise in many power switching circuits, thus reducing power loss in the switching transistors.

We have Various sizes of Diode. Check out our complete collection of Diode.

RHRG75120 IC Specifications

• Manufacturer : ON Semiconductor

• Product Category : Diodes - General Purpose, Power, Switching

• Mounting Style : Through Hole

• Package/Case : TO-247

• Peak Reverse Voltage : 1200 V

• Max Surge Current : 500 A

• If - Forward Current : 75 A

• Configuration : Single

• Recovery Time : 100 ns

• Vf - Forward Voltage : 3.2 V

• Ir - Reverse Current : 250 uA

• Minimum Operating Temperature : - 65 C

• Maximum Operating Temperature : + 175 C

• Series : RHRG75120
