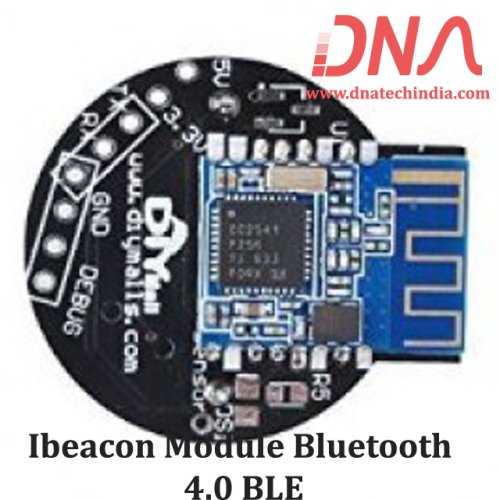

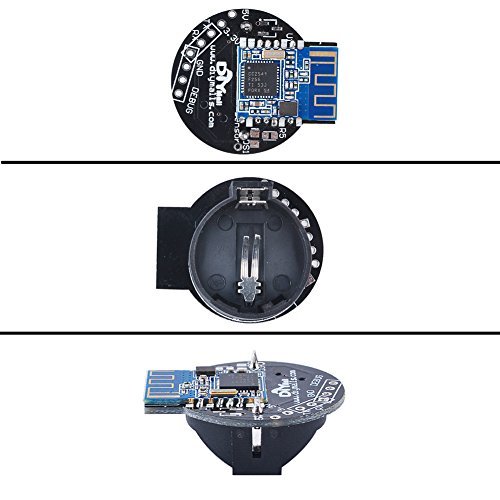

Ibeacon Module Bluetooth 4.0 BLE

This module is for apple iOS 7.0 or android 4.3+,bluetooth 4.0+

• BT Version : Bluetooth Specification V4.0 BLE Send and receive no bytes limit.

• Working frequency : 2.4GHz ISM band

• Modulation method : GFSK(Gaussian Frequency Shift Keying)

• RF Power : -23dbm, -6dbm, 0dbm, 6dbm, can modify through AT Command AT+POWE.

• Speed : Asynchronous: 6K Bytes

• Synchronous : 6K Bytes

• Security : Authentication and encryption

• Service : Central & Peripheral UUID FFE0,FFE1

• Power : +3.3VDC 50mA

• Long range : Open space have 100 Meters with iphone4s

• Power : In sleep mode 400uA~1.5mA, Active mode 8.5mA.

• Working temperature :-5 ~ +65 Centigrade

• Size : 24.8mm x 24.8mm, thickness 7.5mm

• Battery type :CR2032

You can customize your own iBeacon configuration including UUID etc

Features of Ibeacon Module Bluetooth 4.0 BLE

• Tested with iOS 7.0

• Based on TI's CC2541. Range is 30M

• Support firmware upgrade

• Support payment interface

• Support broadcast read the battery level, temperature, humidity acquisition, without connecting module

Applications of Ibeacon Module Bluetooth 4.0 BLE

• Support firmware upgrade

• Support payment interface

• Support broadcast read the battery level, temperature, humidity acquisition, without connecting module

Package Included:

• 1 X iBeacon Module Bluetooth 4.0 BLE
