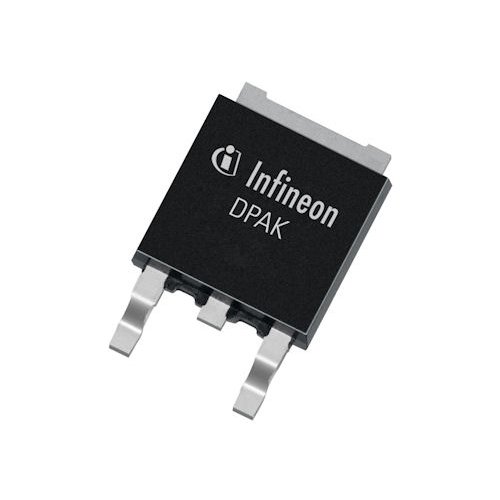

IGP15N60T Low Loss IGBT

IGP15N60Tis a low loss IGBT from Infineon having TRENCHSTOP & FIELDSTOP technology which makes them suitable for applications of upto 600volts.

NOTE: The Markingcode on the IGBT is G15T60

Features of IGP15N60T Low Loss IGBT

• Very low V_CE(sat) 1.5V (typ.)

• Maximum Junction Temperature 175°C

• Short circuit withstand time 5us

• Designed for :

  • Frequency Converters

  • Uninterrupted Power Supply

• Very tight parameter distribution

• High ruggedness, temperature stable behavior

• Very high switching speed

• Positive temperature coefficient in V_CE(sat)

• Low EMI

• Pb-free lead plating; RoHS compliant

• Collector-emitter voltage, T_j ≥ 25^oC V_CE 600 V

• Pulsed collector current, tp limited by T_jmax I_Cpuls 45A

• Turn off safe operating area, V_CE = 600V, Tj = 175oC, tp = 1µs 45A

• Gate-emitter voltage V_GE +-20 V

• Power dissipation T_C = 25oC P_tot 130W

• Operating junction temperature T_j -40 to +175 ^oC

• Storage temperature T_s t_g -55 to +150 ^oC
