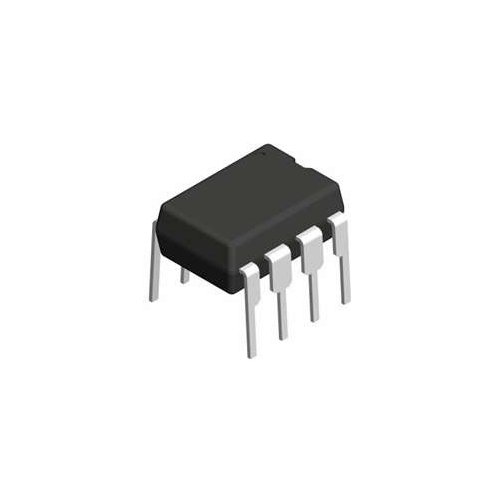

The IL34063A is a monolithic control circuit containing the primary functions required for DC-to-DC converters.
These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. This series was specifically designed to be incorporated in Step-Down and Step Up and Voltage-Inverting applications with a minimum number of external components.
Operation from 3.0 V to 40 V Input
Low Standby Current
Current Limiting
Output Switch Current to 1.5 A
Output Voltage Adjustable
Frequency Operation to 100 kHz
Precision 2% Reference
Power Supply Voltage VCC 40 Vdc
Comparator Input Voltage Range VIR -0.3 to +40 Vdc
Switch Collector Voltage VC(switch) 40 Vdc
Switch Emitter Voltage (Vpin 1 = 40 V) VE(switch) 40 Vdc
Switch Collector to Emitter Voltage VCE(switch) 40 Vdc
Driver Collector Voltage I C(driver) 40 Vdc
Driver Collector Current I C(driver) 100 mA
Switch Current I SW 1.5 A
