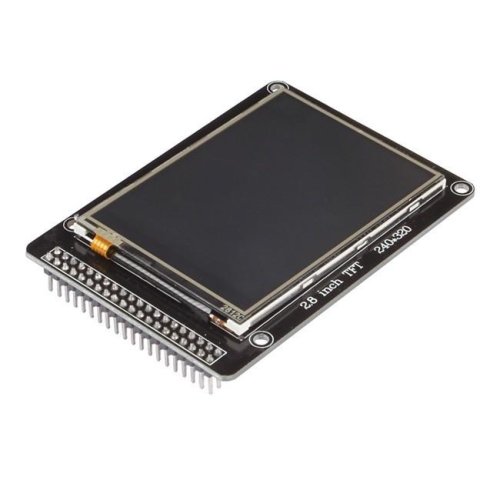

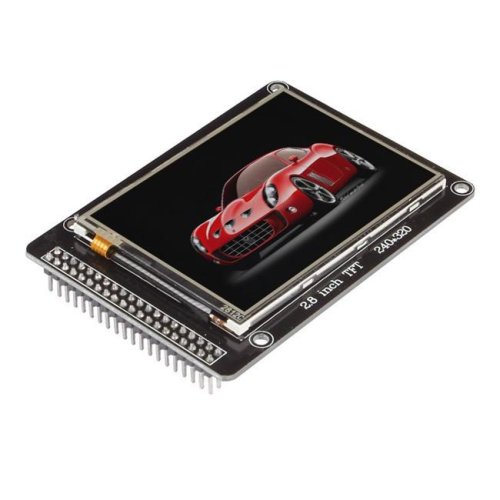

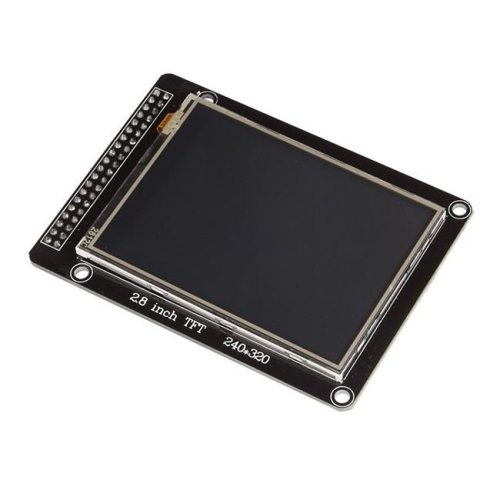

ILI9341 2.8" TFT LCD Touch Screen Module Display

2.8" TFT LCD Display is a LCD touch screen module.

It has 40 pins interface and SD card and Flash reader design. It is a powerful and mutilfunctional module for your project. The Screen include a controller ILI9341, it's a support 8/16 bit data interface , easy to drive by many MCU like arduino families? STM32, AVR and 8051. It is designed with a touch controller in it . The touch IC is XPT2046 , and touch interface is included in the 40 pins breakout. It is the version of product only with touch screen and touch controller.

Features of 2.8" TFT Display

• 262K color

• 240*320

• 2.8 inch

• Wide viewing angle

• ILI9341 : 240 RGB x 320 TFT Driver

• Integrated Power, Gate and Source Driver With RAM

• XPT2046-WIRE TOUCH,WIRE TOUCH, UP TO 125kHz CONVERSION RATE, SERIAL INTERFACE

• Voltage type : 5v or 3v voltage input voltage?input is selectable. Because TFT can only work under 3.3 V voltage, so when the input voltage VIN is 5V, need through the 3.3 V voltage regulator IC step down to 3.3V , when the input voltage of 3.3 V, you need to use the zero resistance make J2 short , is equivalent to not through the voltage regulator IC for module and power supply directly.

• Note : the factory TFT module, are the 5 v power supply. By default.

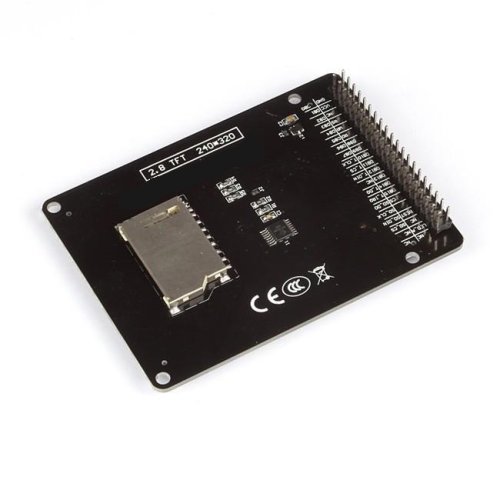

• Carrying on board SD holder, its work to SPI mode.
