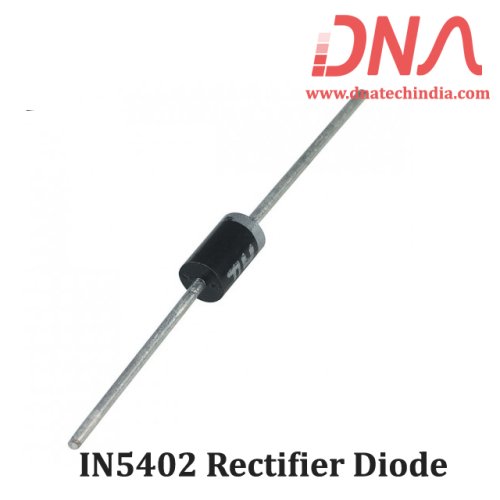

IN5402 Rectifier Diode
We have Various sizes of Diode. Check out our complete collection of Diode.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Low forward voltage
High current capability
Low leakage current
High surge capability
Low cost
Maximum Recurrent Peak Reverse Voltage 200V
Maximum RMS Voltage 140V
Maximum DC Blocking Voltage to T =150A 0C 200V
Operating Temperature Range TJ -65 to +170
Storage Temperature Range TA -65 to +175
Case : Mold plastic use UL 94V-0 recognized flame retardant epoxy
Terminals : Axial leads, solderable per MIL-STD-202, method 208
Polarity : Color band denotes cathode
Mounting Position : Any
