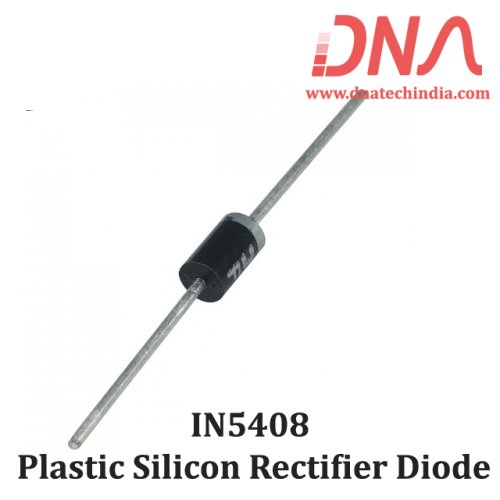

IN5408 Plastic Silicon Rectifier Diode
We have Various sizes of Diode. Check out our complete collection of Diode.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Low forward voltage
High current capability
Low leakage current
High surge capability
Low cost
Maximum Recurrent Peak Reverse Voltage 1000V
Maximum RMS Voltage 700V
Maximum DC Blocking Voltage to T =150A 0C 1000V
Maximum Average Forward Rectified Current 3.0Amp
Peak Forward Surge Current 8.3 ms single half sine-wave 150Amp
Maximum Forward Voltage at 3.0A Peak 1.2V
Storage Temperature Range TA -65 to +175 oC
Operating Temperature Range TJ -65 to +170 oC
Case : Mold plastic use UL 94V-0 recognized flame retardant epoxy
Terminals : Axial leads, solderable per MIL-STD-202, method 208
Polarity : Color band denotes cathode
Mounting Position : Any
See 1 Ratings & Reviews |
