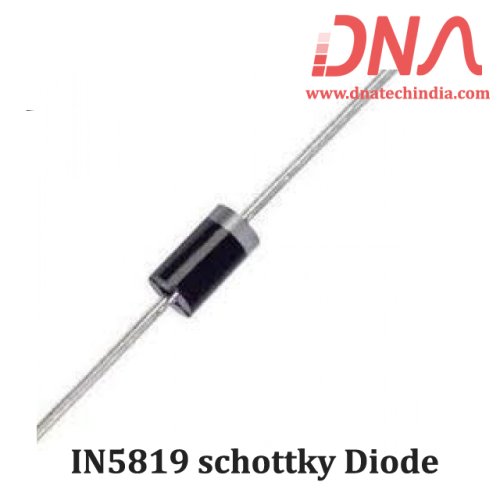

IN5819 schottky Diode
We have Various sizes of Diode. Check out our complete collection of Diode.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Guard Ring Die Construction for Transient Protection
Low Power Loss, High Efficiency
High Surge Capability
High Current Capability and Low Forward Voltage Drop
For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application.
Typical Total Capacitance CT 110 pF
Typical Thermal Resistance Junction to Lead RJL 15 oC/W
Typical Thermal Resistance Junction to Ambient RJA 50 oC/W
Operating and Storage Temperature Range Tj, TSTG -65 to +125 oC
Case : DO-41
Case Material : Molded Plastic. UL Flammability Classification Rating 94V-0
Moisture Sensitivity : Level 1 per J-STD-020C
Terminals : Finish Tin. Plated Leads Solderable per MIL-STD-202, Method 208
Polarity : Cathode Band
Marking : Type Number and Date Code
Weight : 1 grams (approximate)
See 0 Ratings & Reviews |
