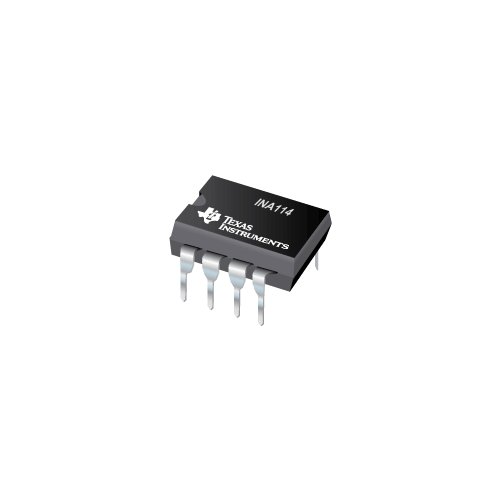

The INA114 is a low cost, general purpose instrumentation amplifier offering excellent accuracy.
Its versatile 3-op amp design and small size make it ideal for a wide range of applications. A single external resistor sets any gain from 1 to 10,000. Internal input protection can withstand up to ±40V without damage.
LOW OFFSET VOLTAGE : 50µV max
LOW DRIFT : 0.25µV/°C max
LOW INPUT BIAS CURRENT : 2nA max
HIGH COMMON-MODE REJECTION : 115dB min
INPUT OVER-VOLTAGE PROTECTION : ±40V
WIDE SUPPLY RANGE : ±2.25 to ±18V
LOW QUIESCENT CURRENT : 3mA max
8-PIN PLASTIC AND SOL-16
BRIDGE AMPLIFIER
THERMOCOUPLE AMPLIFIER
RTD SENSOR AMPLIFIER
MEDICAL INSTRUMENTATION
DATA ACQUISITION
