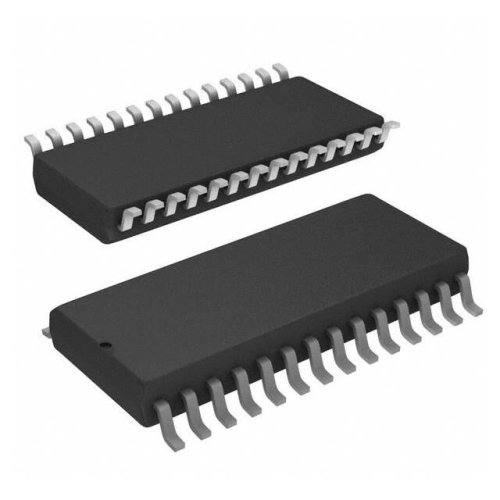

IR2132S Half-Bridge Gate Driver IC for Power Control

IR2132S Half-Bridge Gate Driver IC designed for MOSFETs/IGBTs; 600V support; under-voltage lockout protection.

The IR2132S Half-Bridge Gate Driver IC is engineered for efficient power management in electronic applications. It drives both high and low-side power MOSFETs and IGBTs, ensuring reliable operation in inverter circuits and motor control systems. The built-in under-voltage lockout protection enhances safety, while the matched propagation delays ensure precise switching performance. This component is ideal for high-efficiency power conversion circuits, making it a valuable addition to any design requiring robust gate driving capabilities.

Packaged in a compact SOIC-16 SMD format, the IR2132S Half-Bridge Gate Driver IC supports bootstrap operation up to 600V. Its CMOS/TTL compatible input logic simplifies integration into various systems. Ideal for applications such as switch-mode power supplies (SMPS) and uninterruptible power supplies (UPS), this IC stands out for its versatility and reliability.

Explore the potential of the IR2132S Half-Bridge Gate Driver IC in your next project. With its advanced features and specifications, it meets the demands of modern electronic designs in India, ensuring efficiency and safety in power electronics.

Explore our collection at DNA solutions, featuring top-tier MOSFET & IGBT products. The IR2132S Half-Bridge Gate Driver IC is essential for high-performance applications. Check other MOSFET & IGBT that we have in stock.

At DNA, we cater to Indian electronics buyers. If you need specific parts, reach out to us. We can import components and support retail and bulk orders. Explore related items like Microcontrollers, Sensors, LCDs, HMI Displays, Transistors, and Development boards. Contact Us.

Features of IR2132S Half-Bridge Gate Driver IC

• Drives high and low side power MOSFETs or IGBTs
• Floating channel for bootstrap operation (up to 600V)
• Matched propagation delay for both outputs
• Under-voltage lockout protection on both channels
• Built-in cross-conduction prevention logic
• CMOS/TTL compatible input logic

Specification of IR2132S Half-Bridge Gate Driver IC

• Part Number: IR2132S
• Driver Type: Half-Bridge Driver
• Input Logic Level: CMOS/TTL
• Output Current: Up to 2A typical
• Operating Voltage: Up to 600V
• UVLO Threshold: 8.6V

Applications of IR2132S Half-Bridge Gate Driver IC

• Inverter circuits
• AC and DC motor control systems
• Switch-mode power supplies (SMPS)
• Uninterruptible Power Supplies (UPS)
• High-efficiency power conversion circuits

Related Links for IR2132S Half-Bridge Gate Driver IC for Power Control

• Other Products from MOSFET & IGBT Category

Package Includes

• 1 X IR2132S Half-Bridge Gate Driver IC SMD
