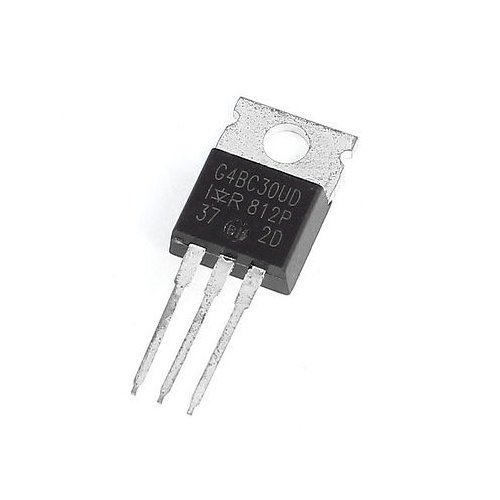

IRG4BC30UD Ultra-Fast CoPack IGBT

IRG4BC30UD is an IGBT with Ultrafast Soft Recovery Diode.

Features of IRG4BC30UD Ultra-Fast CoPack IGBT

• Ultra-Fast : Optimized for high operating frequencies 8-40 kHz in hard switching, >200 kHz in resonant mode

• Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3

• IGBT co-packaged with HEXFREDTM ultrafast, ultra-soft-recovery anti-parallel diodes for use in bridge configurations

• Industry standard TO-220AB package

• Generation -4 IGBT's offer highest efficiencies available

• IGBTs optimized for specific application conditions

• HEXFRED diodes optimized for performance with IGBTs . Minimized recovery characteristics require less/no snubbing

• Designed to be a "drop-in" replacement for equivalent industry-standard Generation 3 IR IGBTs

• Collector-to-Emitter Voltage (V_CES) 600 V

• Continuous Collector Current (I_C @ T_C = 25°C ) 23Amp

• Continuous Collector Current (I_C @ T_C = 100°C) 12Amp

• Pulsed Collector Current ( I_CM) 92 Amp

• Clamped Inductive Load Current (I_LM)92Amp

• Diode Continuous Forward Current (I_F @ T_C = 100°C) 12Amp

• Diode Maximum Forward Current (I_FM) 92Amp

• Gate-to-Emitter Voltage (V_GE) ± 20 V
