SPST Power ON-OFF switch IRS-101-8C

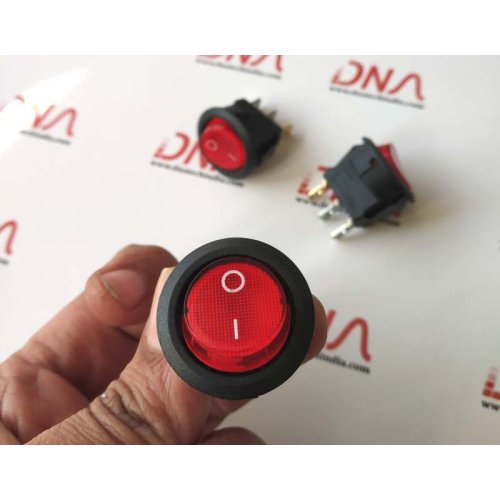

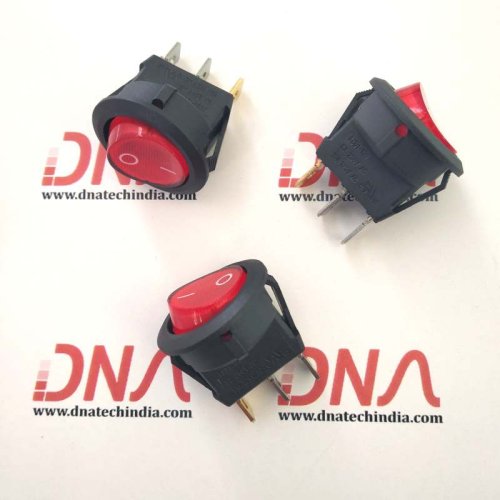

IRS-101-8C Power ON-OFF switch with RED Indicator

This is a high quality Industrial Grade three terminal cabinet mounting Rocker switch with indicator. This is a single Pole Single Throw (SPST) switch with indicator which is always ON (irrespective if switch is ON or OFF). Please check the video given below below for its working.

Specifications of Single-Pole Rocker Switch IRS-101-8C ON-OFF

• At 125 Volts : 10 Ampere; At 250 Volts: 6 Ampere
• Single pole single throw switch
• Operating Temp. : -25+85°C

• Contact Resistance : 30MΩ Max

• Electrical life : 10000 Cycles

• Insulation Resistance : 100MΩ Min

• Mechanical life : 100000 Cycles

• Withstand Voltage : 1500VAC/Minute

• Terminals & Mid pins : Copper with silver plated

• Side pins : Brass with silver plated

• Contacts : Copper with compound silver

• Material
