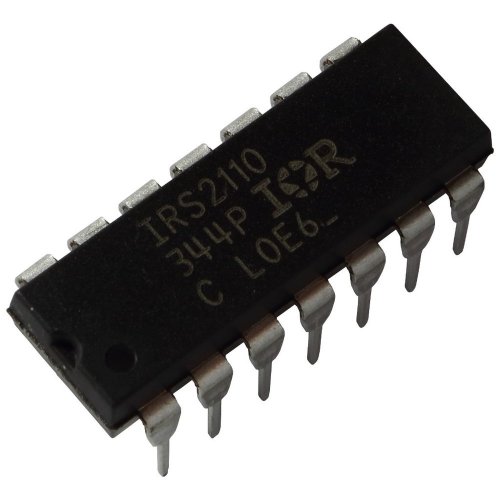

IRS2110 MOSFET and IGBT Driver IC

IRS2110 is high voltage, high speed power MOSFET and IGBT drivers with independent high-side and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 500 V or 600 V.

Features of IRS2110 High and Low Side Driver IC

• Floating channel designed for bootstrap operation

• Fully operational to +500 V or +600 V

• Tolerant to negative transient voltage, dV/dt immune

• Gate drive supply range from 10 V to 20 V

• Undervoltage lockout for both channels

• 3.3 V logic compatible

• Separate logic supply range from 3.3 V to 20 V

• Logic and power ground ± 5V offset

• CMOS Schmitt-triggered inputs with pull-down

• Cycle by cycle edge-triggered shutdown logic

• Matched propagation delay for both channels

• Outputs in phase with inputs

• RoHS compliant

IF you want we also have IR2110 MOSFET & IGBT Driver IC in stock
