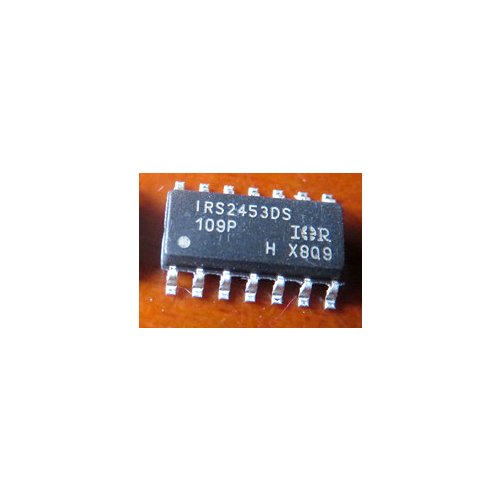

IRS2453DS Gate Driver IC
The IRS2453DS is based on the popular IR2153 self-oscillating half-bridge gate driver IC, and incorporates a high voltage full-bridge gate driver with a front end oscillator similar to the industry standard CMOS 555 timer. HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The output driver features a high pulse current buffer stage designed for minimum driver cross-conduction. Noise immunity is achieved with low di/dt peak of the gate drivers, and with an under voltage lockout hysteresis greater than 1.5 V. The IRS2453DS also includes latched and non-latched shutdown pins.
Integrated 600 V full-bridge gate driver
CT, RT programmable oscillator
Micropower startup
Logic level latched shutdown pin
Internal bootstrap FETs
Excellent latch immunity on all inputs & outputs
ESD protection on all pins
RoHS compliant
Mounting Style : SMD/SMT
Package/Case : SOIC-Narrow-14
Number of Drivers : 4 Driver
Output Current : 260 mA
Configuration : Inverting, Non-Inverting
Rise Time : 200 ns
Fall Time : 100 ns
Supply Voltage - Max : 16.6 V
Supply Voltage - Min : 10 V
Minimum Operating Temperature : - 55 C
Maximum Operating Temperature : + 150 C
Type : High and Low Side
Brand : Infineon / IR
