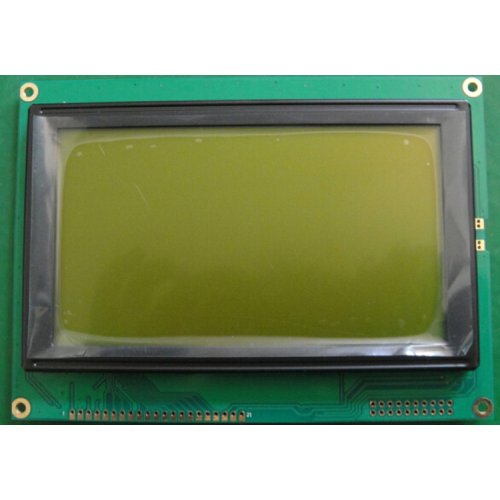

JHD240128 240X128 GLCD Green Display

The JHD240128/JHD240128D is based on T6963CFG controller.

Features of JHD240128

• Display construction : 240X128 DOTS

• Display mode : STN OR FSTN( Y/G)

• Display type Positive : Transflective

• Backlight : Green 5.0V

• Viewing direction : 6 o’clock

• Operating temperature : Indoor

• Driving voltage : Single power

• Driving method : 1/128 duty, 1/12 bias

• Type : COB (Chip On Board)

• Number of data line : 8-bit parallel

• Connector : Pin

• Color : Green, Yellow

• Module size: 144mm X 104.0mm

• Viewing area: 114mm X 61.0mm

• Diameter of mounting hole: 3.0 mm

• Weight About: 50g
