The L200 is a monolithic integrated circuit for voltage and current programmable regulation.

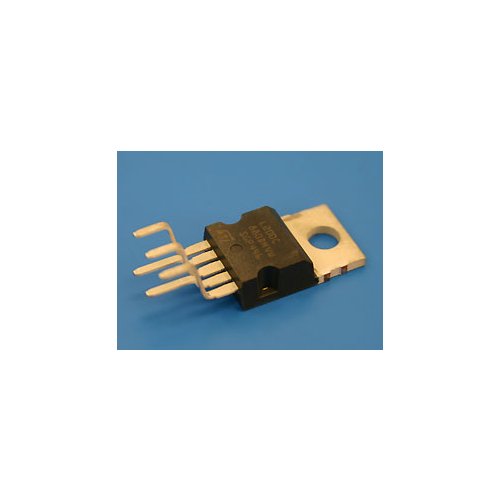

It is available in Pentawatt® package or 4-lead TO-3 metal case. Current limiting, power limiting, thermal shutdown and input over voltage protection (up to60 V) make the L200 virtually blow-out proof. L200C can be used to replace fixed voltage regulators when high output voltage precision is required and eliminates the need to stock a range of fixed voltage regulators.
Vi DC Input Voltage 40 V
Vi Peak Input Voltage (10 ms) 60 V
∆Vi-o Dropout Voltage 32 V
Io Output Current internally limited
Ptot Power Dissipation internally limited
Tstg Storage Temperature -55 to 150 °C
Top Operating Junction Temperature for L200C -25 to 150 °C
for L200 -55 to 150 °C
