Description

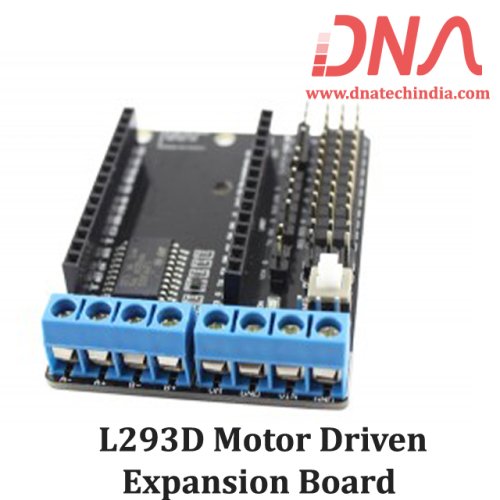

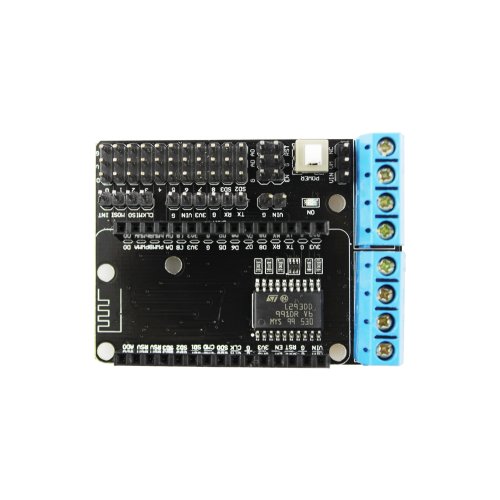

L293D Motor Driven Expansion Board for Node Mcu Lua Wifi Board

Name: L293D Motor Driven Expansion Board for Node Mcu Lua Wifi Board
Brand: Generic
SKU: DAA768
Price: 189.00 INR
Availability: InStock
Rating: 4.7 (5 reviews)

This is the first motor-driven expansion board that based on ESP- 12E development platform.

When inserting ESP-12E module, please note the direction consistent with an expansion board antenna; The use of short modules that can simultaneously control board and motor.

We have Various sizes of Modules. Check out our complete collection of Modules

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of L293D Motor Driven Expansion Board(ESP8266) for Node Mcu Lua Wifi Board

ESP12 DEV KIT development board expansion module;

lead ESP12 DEV KIT all the features of pins : SPI, UART, GPIO, AI and 3.3V power connector;

extend two-way motor-driven, two-way direct drive motor;

on board power switch;

L293D

Motor power, control power separation; In the experiment, a short circuit can block the merger, shorted to VIN and VM, while power supply to the motor and the control board.

Specification of L293D Motor Driven Expansion Board(ESP8266) for Node Mcu Lua Wifi Board

Motor Power Range : 4.5V ~ 36V

control supply range : 4.5V ~ 9V

Logical operating current Iss : ≤60mA (Vi = L), ≤22mA (Vi = H);

Driving part of the work current Io : ≤1.2A;

Maximum power dissipation : 4W (T = 90 ℃)

Control signal input level : High : 2.3V≤VIH≤VIN; Low: -0.3V≤VIL≤1.5V

Operating temperature : -25 ℃ ~ + 125 ℃

Drive Type : Dual high-power H-bridge driver

ESP12E Dev Kit Control Port: D1, D3 (A motor); D2, D4 (B motor)

L293D Motor Driven Expansion Board for Node Mcu Lua Wifi Board

4.7

See 5 Ratings & Reviews |

Stock: 2

SKU: DAA768

₹ 223.02 (inc GST)

Description

L293D Motor Driven Expansion Board for Node Mcu Lua Wifi Board

This is the first motor-driven expansion board that based on ESP- 12E development platform.

When inserting ESP-12E module, please note the direction consistent with an expansion board antenna; The use of short modules that can simultaneously control board and motor.

We have Various sizes of Modules. Check out our complete collection of Modules

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of L293D Motor Driven Expansion Board(ESP8266) for Node Mcu Lua Wifi Board

ESP12 DEV KIT development board expansion module;

lead ESP12 DEV KIT all the features of pins : SPI, UART, GPIO, AI and 3.3V power connector;

extend two-way motor-driven, two-way direct drive motor;

on board power switch;

L293D

Motor power, control power separation; In the experiment, a short circuit can block the merger, shorted to VIN and VM, while power supply to the motor and the control board.

Specification of L293D Motor Driven Expansion Board(ESP8266) for Node Mcu Lua Wifi Board

Motor Power Range : 4.5V ~ 36V

control supply range : 4.5V ~ 9V

Logical operating current Iss : ≤60mA (Vi = L), ≤22mA (Vi = H);

Driving part of the work current Io : ≤1.2A;

Maximum power dissipation : 4W (T = 90 ℃)

Control signal input level : High : 2.3V≤VIH≤VIN; Low: -0.3V≤VIL≤1.5V

Operating temperature : -25 ℃ ~ + 125 ℃

Drive Type : Dual high-power H-bridge driver

ESP12E Dev Kit Control Port: D1, D3 (A motor); D2, D4 (B motor)
