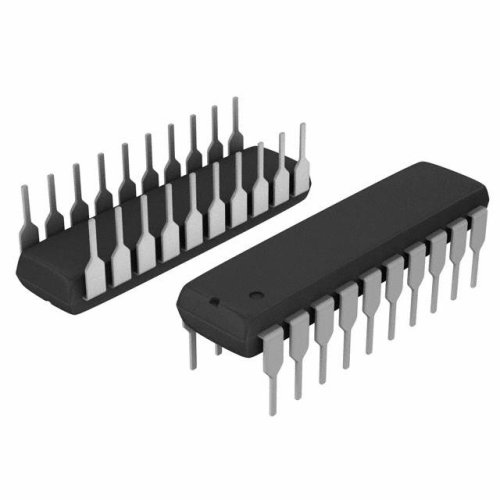

L297 Stepper Motor Driver Controller 20 Pin DIP IC

L297 Stepper Motor Driver Controller IC for precise control of stepper motors with selectable drive modes.

The L297 Stepper Motor Driver Controller 20 Pin DIP IC is engineered for seamless control of both bipolar and unipolar stepper motors. It interfaces effectively with power drivers like L298 and L293, making it suitable for various applications. This controller IC offers full, half, and wave drive modes, ensuring smooth operation. With features like step clock input and direction control, the L297 Stepper Motor Driver Controller 20 Pin DIP IC enhances precision in motion control tasks.

Ideal for projects in CNC, robotics, and automation, the L297 Stepper Motor Driver Controller 20 Pin DIP IC operates at a supply voltage of 4.75V to 5.25V and supports an operating frequency of up to 25 kHz. It is housed in a 20-pin DIP package, making it easy to integrate into various electronic setups. The controller also includes enable, sync, and reset functionalities to simplify motor management.

Whether you are developing robotic arms or camera sliders, the L297 Stepper Motor Driver Controller 20 Pin DIP IC provides reliable performance for precision control setups. Explore how this component can elevate your mechatronics and embedded control projects.

Explore the L297 Stepper Motor Driver Controller from a trusted manufacturer at DNA. This Motor Driver is perfect for your automation needs. Check other Motor Driver that we have in stock.

If you are searching for specific electronic components, reach out to us. We can import parts not in stock and support both retail and bulk orders. Also, check out related items like Nextion Display, Development boards, Sensor Module, Microcontroller, and Analog IC. Contact Us.

Features of L297 Stepper Motor Driver Controller 20 Pin DIP IC

• Controls bipolar or unipolar stepper motors
• Compatible with L298, L293 driver ICs
• Selectable drive modes: full, half, and wave
• Step clock and direction control inputs
• Enable, sync, and reset functionalities

Specification of L297 Stepper Motor Driver Controller 20 Pin DIP IC

• Supply Voltage: 4.75V – 5.25V
• Operating Frequency: Up to 25 kHz
• Control Modes: Full, Half, Wave Drive
• Output Current: Logic level output
• Input Logic Level: TTL/CMOS Compatible
• Package Type: DIP-20

Applications of L297 Stepper Motor Driver Controller 20 Pin DIP IC

• Robotic arms and automation systems
• Stepper motor-based positioning systems
• Camera sliders and precision control setups
• Mechatronics and embedded control projects

Package Includes

• 1 X L297 Stepper Motor Driver Controller 20 Pin DIP IC
