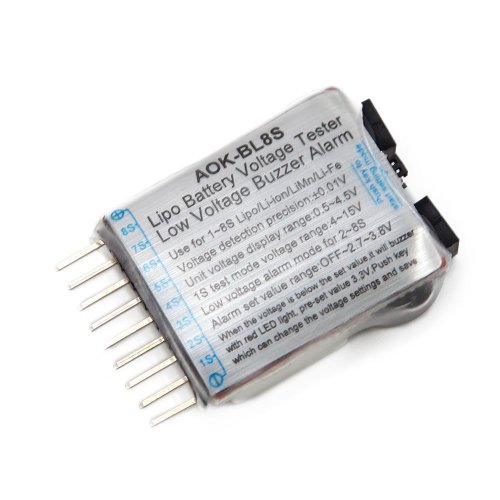

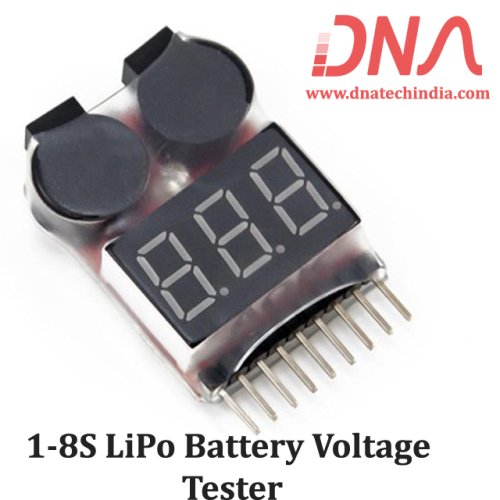

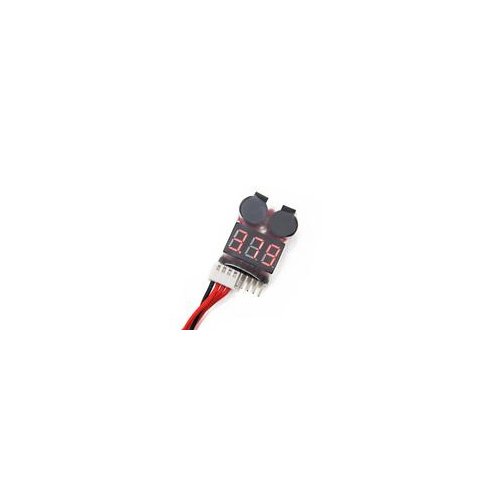

1-8S LiPo Battery Voltage Tester

1-8S LiPo Battery Voltage Tester with Low Volt Alarm Buzzer LED

This a great two in one tool that gives a loud alarm at low voltage and can quickly display battery voltage. Simply plug a 1-8s battery's balance connector into the voltage meter/buzzer, and you will receive an instant readout of the total voltage and an individual reading of each cell.

We have Various sizes of Modules. Check out our complete collection of Modules

Specification of Battery Voltage Tester

• Brand New & High Quality.

• Use for 1-8s Lipl/Li-ion/LiMn/Li-Fe.

• Voltage detection pricision : 0.01V.

• Unit voltage display range : 0.5V-4.5V.

• Total voltage display range : 0.5V-36V.

• 1S test mode voltage range : 3.7v-30v.

• Low voltage alarm mode for 2-8S.

• Alarm set value range : OFF-2.7V-3.7V.

• Push key which can change the voltage settings and save.

• Size : 3.9cm x 2.4cm x 0.9cm.

• For 1S-8S / Lipo / Li-ion / Li Mn / Li-Fe Battery.

Features

• This product is using for detecting 1S-8S lithium battery

• Detect the voltage of each battery core automatically, support reverse connection protection.

• To know the working state of your battery anytime, protect the battery from overcharge and over discharge.

• The red LED will flash,the buzzer will beeping when the voltage is below the set point.

• The factory default setting is 3.3V, press the button to change the voltage setting, and it will save your current setting automatically.

package Includes

• 1-8S LIPO BATTERY VOLTAGE TESTER / LOW VOLTAGE BUZZER ALARM
