Lithium Ion Protection Board BMS HX-2S-JH10 Module

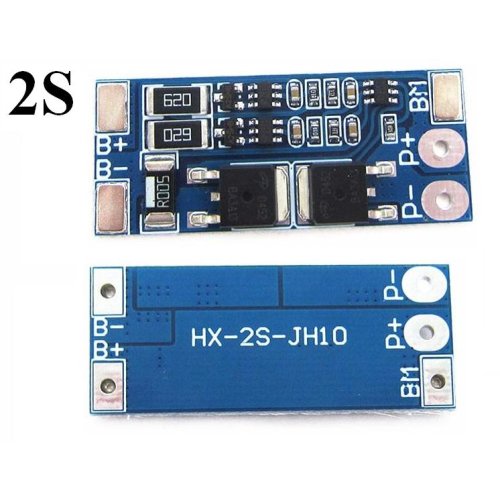

HX-2S-JH10 2S Lithium ion BMS Module

This module is perfect for making a 2S battery pack using 18650 Li-ion Batttery. HX-2S-JH10 is a 2 Series (2S) Lithium Ion Battery Managment System (BMS) Module with 8 Ampere continuous Li-ion protection board.

Specifications of 18650 Lithium Protection Board BMS HX-2S-JH10 Module

• Model : HX-2S-JH10

• Overcharge voltage range : 4.25-4.35 v ± 0.05v

• Over discharge voltage range : 2.5-3.0v ± 0.05v

• The maximum operating current : 8 Ampere Operating temperature: -40 to +50 ℃

• Instantaneous upper limit current : 10 Ampere Storage conditions: -40 to +80 ℃

• Quiescent current : less than 10uA

• Effective life : more than 50,000 hours

• Internal resistance : less than 300mΩ

• Short circuit protection : to protect, disconnect the load delay self-recovery

• Charging voltage : 8.4 - 9.0 volts balanced current is 58mA

Solder Joint Description:

• B + battery positive;

• B-battery negative;

• MB is connected to battery 1 and battery 2 before the connection point;

• P + connected to the charge / discharge positive terminal (charge terminal / discharge terminal shared);

• P - then charge / discharge negative (charge / discharge common).
