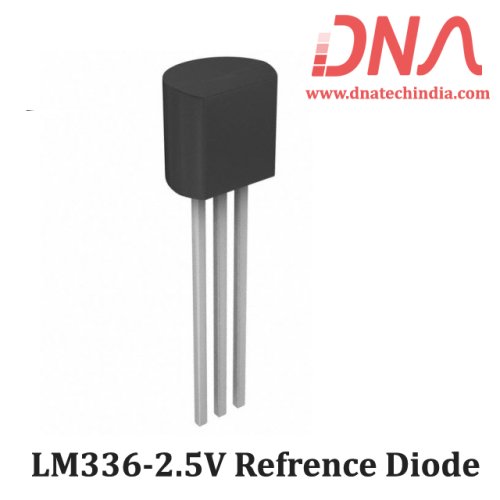

The LM336-2.5 integrated circuits is precision 2.5V shunt regulator diodes.
These monolithic IC voltage references operate as a low temperature-coefficient 2.5V zener with 0.2 Ω dynamic impedance. A third terminal on the LM136-2.5 allows the reference voltage and temperature coefficient to be trimmed easily. The LM136-2.5 series is useful as a precision 2.5V low voltage reference for digital voltmeters, power supplies or op amp circuitry.
The 2.5V make it convenient to obtain a stable reference from 5V logic supplies. Further, since the LM136-2.5 operates as a shunt regulator, it can be used as either a positive or negative voltage reference. The LM136-2.5 is rated for operation over −55˚C to +125˚C while the LM236-2.5 is rated over a −25˚C to +85˚C temperature range. The LM336-2.5 reference Diode is rated for operation over a 0˚C to +70˚C temperature range.
We have Various sizes of Diode. Check out our complete collection of Diode.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Low temperature coefficient
Wide operating current of 400 µA to 10 mA
0.2 Ω dynamic impedance
±1% initial tolerance available
Guaranteed temperature stability
Easily trimmed for minimum temperature drift
Fast turn-on
