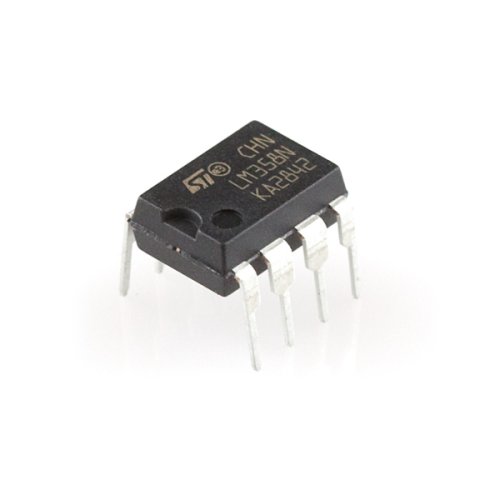

The LM358 and LM2904 are also available in a chip sized package (8-Bump micro SMD) using National’s micro SMD package technology.
The LM158 series consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
The Application areas of LM358 include transducer amplifiers, dc gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems. For example, the LM158 series can be directly operated off of the standard +5V power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional ±15V power supplies.
Internally frequency compensated for unity gain
Large dc voltage gain : 100 dB
Wide bandwidth (unity gain) : 1 MHz (temperature compensated)
Wide power supply range :
— Single supply : 3V to 32V
— or dual supplies : ±1.5V to ±16V
Very low supply current drain (500 µA) essentially independent of supply voltage
Low input offset voltage : 2 mV
Input common-mode voltage range includes ground
Differential input voltage range equal to the power supply voltage
Large output voltage swing
Two internally compensated op amps
Eliminates need for dual supplies
Allows direct sensing near GND and VOUT also goes to GND
Compatible with all forms of logic
Power drain suitable for battery operation
