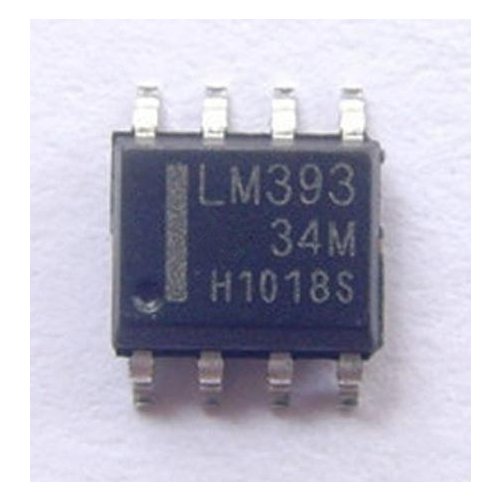

LM393 SOIC 8 SMD IC

LM393 Dual Differential Comparators

These devices consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage.

Features Of LM393 SMD IC

• Single-Supply or Dual Supplies

• Wide Range of Supply Voltage
• Low Supply-Current Drain Independent of Supply Voltage : 0.4 mA (Typical) Per Comparator

• Low Input Bias Current : 25 nA (Typical)

• Low Input Offset Current : 3 nA (Typical)

• Low Input Offset Voltage : 2 mV (Typical)

• Common-Mode Input Voltage Range Includes Ground

• Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage : ±36 V

• Low Output Saturation Voltage

• Output Compatible With TTL, MOS, and CMOS

Applications Of LM393 SMD IC

• Battery Powered Application

• Industrial Application
