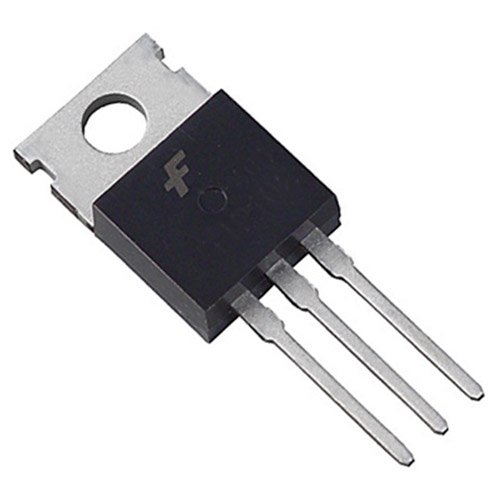

The LM78XX series of three terminal positive regulators are available in the TO-220 package and with several fixed output voltages, making them useful in a wide range of applications.
Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents. LM7806 is the voltage ragulator with the output +6V DC and 1Amp current.
Output Current up to 1A
Output Voltages of 6V
Thermal Overload Protection
Short Circuit Protection
Output Transistor Safe Operating Area Protection
Thermal Resistance Junction-Cases (TO-220) RJC: 5 0C/W
Thermal Resistance Junction-Air (TO-220) RJA: 65 0C/W
Operating Temperature Range TOPR: 0-150 0C
Storage Temperature Range TSTG: -65-150 0C
