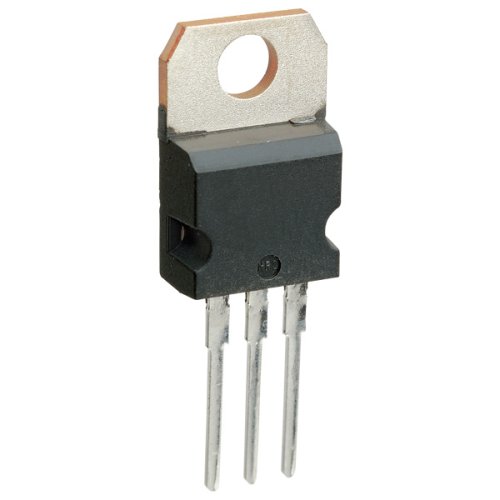

The LM7918 is a 3-terminal negative voltage regulator.
7912 voltage regulator requires only one external component — a compensation capacitor at the output. The LM79XX series is packaged in the TO 220 power package and is capable of supplying 1.5A of output current. These regulators employ internal current limiting safe area protection and thermal shutdown for protection against virtually all overload conditions. Low ground pin current of the LM79XX series allows output voltage to be easily boosted above the preset value with a resistor divider. The low quiescent current drain of these devices with a specified maximum change with line and load ensures good regulation in the voltage boosted mode. LM7918 voltage regulator gives -18 Volt DC output and 1.5 Ampere current.
Thermal, short circuit and safe area protection
High ripple rejection
1.5A output current
Output Voltage -18V DC
4% tolerance on preset output voltage
Operating Junction Temperature Range 0˚C to +125˚C
Storage Temperature Range −65˚C to +150˚C
Lead Temperature (Soldering, 10 sec.) 230˚C
See 1 Ratings & Reviews |
The LM7918 is a 3-terminal negative voltage regulator.
7912 voltage regulator requires only one external component — a compensation capacitor at the output. The LM79XX series is packaged in the TO 220 power package and is capable of supplying 1.5A of output current. These regulators employ internal current limiting safe area protection and thermal shutdown for protection against virtually all overload conditions. Low ground pin current of the LM79XX series allows output voltage to be easily boosted above the preset value with a resistor divider. The low quiescent current drain of these devices with a specified maximum change with line and load ensures good regulation in the voltage boosted mode. LM7918 voltage regulator gives -18 Volt DC output and 1.5 Ampere current.
Thermal, short circuit and safe area protection
High ripple rejection
1.5A output current
Output Voltage -18V DC
4% tolerance on preset output voltage
Operating Junction Temperature Range 0˚C to +125˚C
Storage Temperature Range −65˚C to +150˚C
Lead Temperature (Soldering, 10 sec.) 230˚C
