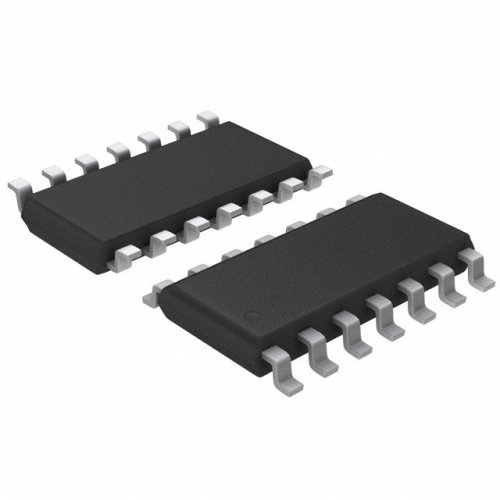

LM324 Quad OPAMP SMD IC

LM324 Quad OPAMP SMD IC

LM324 series consists of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifiers, DC gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems. For example, the LM324 series can be directly operated off of the standard +5V power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional ±15V power supplies.

DNA solutions, Nashik has various types of Power IC's. Check out our complete collection of Power IC's.

• Internally frequency compensated for unity gain


• Input common-mode voltage range includes ground


• Wide bandwidth (unity gain) 1 MHz (temperature compensated)


• Wide power supply range: Single supply 3V to 32V or dual supplies ±1.5V to ±16V


• Very low supply current drain (700 µA) — essentially independent of supply voltage


• Low input biasing current 45 nA (temperature compensated)


• Low input offset voltage 2 mV and offset current: 5 nA


• Differential input voltage range equal to the power supply voltage


• Large output voltage swing 0V to V+ − 1.5V


• Large DC voltage gain 100 dB


Package Includes

1 x LM324 Quad OPAMP SMD IC
