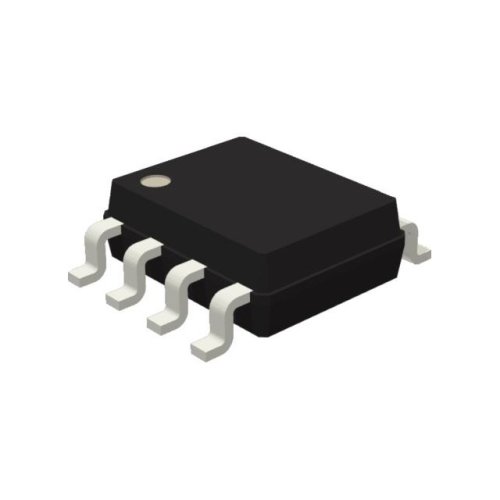

LS7184NS (SOIC) Encoder to Counter Interface SMD IC

LS7184NS (SOIC) Encoder to Counter Interface SMD IC

The LS7183N and LS7184N are CMOS quadrature clock converters. Quadrature clocks derived from optical or magnetic encoders, when applied to the A and B inputs of the LS7183N / LS7184N, are converted to strings of Up Clocks and Down Clocks (LS7183N) or to a Clock and an Up/Down direction control (LS7184N). These outputs can be interfaced directly with standard Up/Down counters for direction and position sensing of the encoder

DNA solutions, Nashik has various types of SMD IC. Check out our complete collection of SMD IC.

• x1, x2 and x4 resolution


• Programmable output pulse width (200ns to 140μs)


• Excellent regulation of output pulse width


• TTL and low voltage CMOS compatible I/Os


• +3V to +12V operation (VDD - VSS)


• LS7183N, LS7184N (DIP)- LS7183NS, LS7184NS (SOIC)


Applications of LS7184NS (SOIC) Encoder to Counter Interface SMD IC

• Interface incremental encoders to Up / Down Counters


• Interface rotary encoders to Digital Potentiometers


Package Includes

1 x LS7184NS (SOIC) SMD IC
