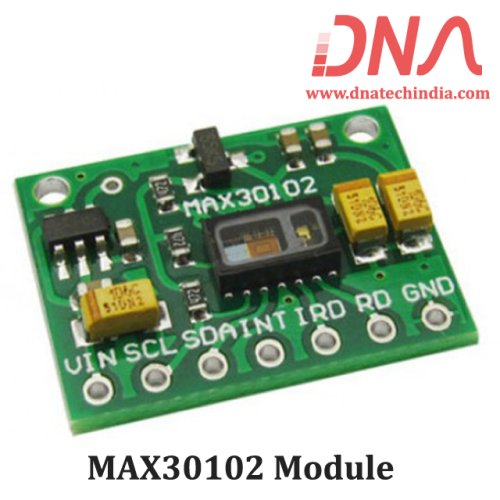

MAX30102 Module
MAX30102 Pulse Oximetry and Heart-rate Monitor Biosensor Module
The MAX30102 is an integrated pulse oximetry and heart-rate monitor biosensor module. It includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection. The MAX30102 provides a complete system solution to ease the design-in process for mobile and wearable devices.
The MAX30102 operates on a single 1.8V power supply and a separate 5.0V power supply for the internal LEDs. Communication is through a standard I2C-compatible interface. The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.We have Various sizes of Sensor Modules. Check out our complete collection of Sensor Modules
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of MAX30102
- Heart-Rate Monitor and Pulse Oximeter Biosensor in LED Reflective Solution
- Tiny 5.6mm x 3.3mm x 1.55mm 14-Pin Optical Module
Integrated Cover Glass for Optimal, Robust Performance- Ultra-Low Power Operation for Mobile Devices
Programmable Sample Rate and LED Current for Power Savings
Low-Power Heart-Rate Monitor (< 1mW)
Ultra-Low Shutdown Current (0.7µA, typ)- Fast Data Output Capability
High Sample Rates- Robust Motion Artifact Resilience
High SNR- -40°C to +85°C Operating Temperature Range
Applications of MAX30102
- Fitness Assistant Devices
