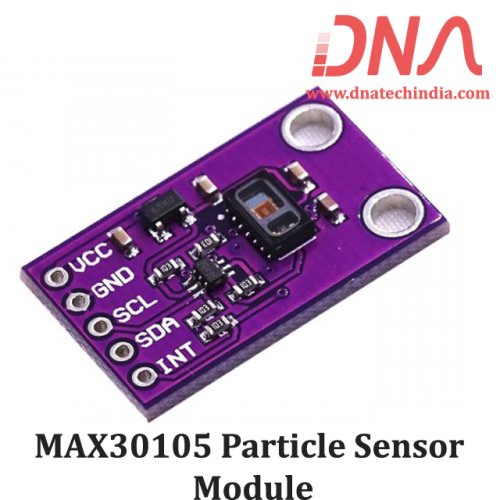

MAX30105 Particle Sensor Module

The MAX30105 operates on a single 1.8V power supply and a separate 5.0V power supply for the internal LEDs.

The MAX30105 is an integrated particle-sensing module. It includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection. The MAX30105 provides a complete system solution to ease the design-in process of smoke detection applications including fire alarms. Due to its extremely small size, the MAX30105 can also be used as a smoke detection sen- sor for mobile and wearable devices.
It communicates through a standard I 2 C-compatible inter- face. The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.

We have Various sizes of Misc Modules. Check out our complete collection of Misc Modules

Features of MAX30105 Sensor

• High Sensitivity Optical Reflective Solution for Detection of Wide Variety of Particle Sizes

• Tiny 5.6mm x 3.3mm x 1.55mm 14-Pin Optical Module

• Integrated Cover Glass for Optimal, Robust Performance

• Ultra-Low Power Operation

• Programmable Sample Rate and LED Current for Power Savings

• Ultra-Low Shutdown Current (0.7µA, typ)

• Robust Motion Artifact Resilience

• High SNR

• -40°C to +85°C Operating Temperature Range

• Capable of Operating at High Ambient Levels

• Excellent Ambient Rejection Capability

Applications of MAX30105

• Fire Alarms

• Smoke Detectors for Building Automation

• Smoke Detectors for Mobile Devices

• Smoke Detectors for Wearable Devices
