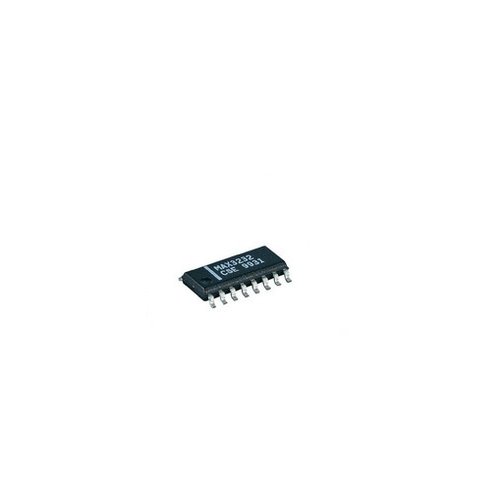

MAX3232 is a TTL to RS232 converter and is used in place of MAX232 in circuits which work on 3.3 volts.
MAX3232 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signalling rates up to 250 kbit/s and a maximum of 30-V/µs driver output slew rate.
RS-232 Bus-Pin ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM)
Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards
Operates With 3-V to 5.5-V VCC Supply
Operates Up To 250 kbit/s
Two Drivers and Two Receivers
Low Supply Current . . . 300 µA Typical
External Capacitors . . . 4 × 0.1 µF
Accepts 5-V Logic Input With 3.3-V Supply
Alternative High-Speed Pin-Compatible
Device (1 Mbit/s) − SNx5C3232
Battery-Powered Systems
PDAs
Notebooks
Laptops
Palmtop PCs
Hand-Held Equipment
