MAX31855K Cold Junction Compensated Thermocouple-to-Digital Converter 14 bit IC

MAX31855K Cold Junction Compensated K-Type Thermocouple to Digital Converter IC

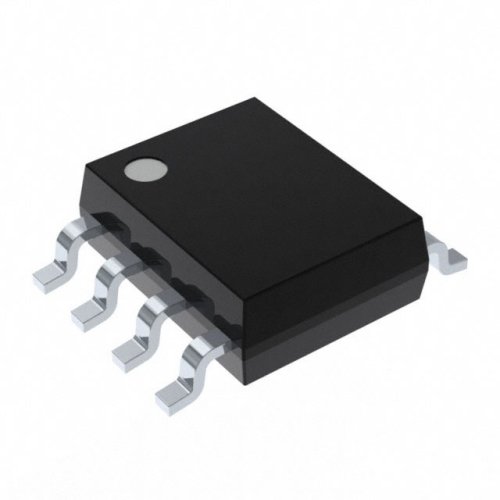

The MAX31855K is a cold junction compensated thermocouple to digital converter with built-in 14bit analogue to digital converter in 8 pin NSOIC package. The device contains cold junction compensation sensing and correction, digital controller, SPI compatible interface and associated control logic. It is designed to work in conjunction with an external microcontroller (μC) in thermostatic, process control or monitoring applications.

The MAX31855K IC performs cold junction compensation and digitizes the signal from K type thermocouple with measuring temperature range of -200°C to + 1350°C.

• Integrated Cold-Junction Compensation

• Integration Reduces Design Time and Lowers System Cost

• 14-Bit, 0.25°C Resolution Converter

• Versions Available for Most Common Thermocouple Types: K-, J-, N-, T-, S-, R-, and E-Type

• Detects Thermocouple Shorts to GND or VCC

• Detects Open Thermocouple

Applications of MAX31855K IC

• Industrial

• Appliances

• HVAC

Related Links

• MAX31855KASA Datasheet

Package Includes

1 x MAX31855K K Type Thermocouple to Digital Converter 14 bit IC
