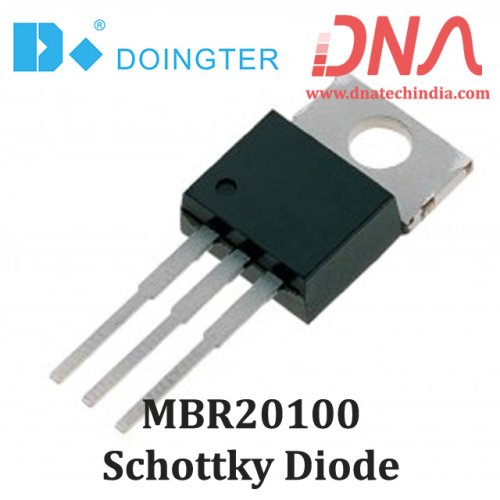

MBR20100 Dual Schottky Diode with common cathode; Doingter Make
MBR20100 is a rectifier dual diode that is commonly used in Converter circuits. MBR20100 Schottky diode comes in TO220 package. The package consists of two diodes in parallel increasing the current rating and reducing the package size and cost. Schottky diodes are faster & efficient (low voltage drop) they are commonly preferred over normal diodes provided the reverse voltage is need not be high.
Also since the diode package has common cathode it can be used in protection circuits and filter circuits for voltage clamping. MBR20100 is a perfect high current dual Schottky diode for your application.
DNA Solutions has large collection of various types of Diodes & Transistors. Check our complete collection of Schottky Diodes.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
20 A Total (10 A Per Diode Leg)
Guard−Ring for Stress Protection
Low Forward Voltage
175°C Operating Junction Temperature
Epoxy Meets UL 94 V−0 @ 0.125 in
Low Power Loss/High Efficiency
High Surge Capacity
Low Stored Charge Majority Carrier Conduction
Shipped 50 units per plastic tube
These Devices are Pb−Free and are RoHS Compliant
1 x MBR20100 Schottky Diode (Doingter)
See 0 Ratings & Reviews |
