Description

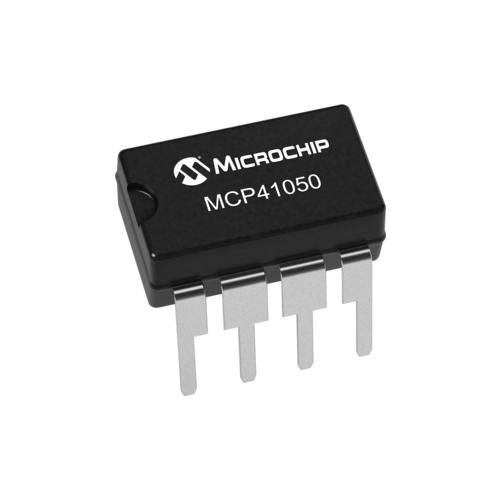

MCP41050 8-Bit Digital Potentiometer

The MCP41050 is a single-channel, 8-bit digital potentiometer features 50kΩ end-to-end resistance value with an SPI serial interface. The wiper position varies linearly and is controlled via the SPI interface. The MCP41050 has outstanding AC and DC characteristics, and consumes <1 µA during static operation. Applications for the MCP41050 digital potentiometer include audio equipment (volume and tone controls), servo-motor control, battery charging and control, communications (line impedance matching), power supplies, instrumentation (gain, offset adjust), LCD contrast control and programmable filters. The MCP41050 is available in 8-pin PDIP and SOIC packages.

Features of MCP41050 8-Bit Digital Potentiometer

Single Resistor Network
Potentiometer or Rheostat configuration options
Resistor Network Resolution 8-bit: 255 Resistors (256 Steps)
RAB Resistances options of: 50kΩ
Zero-Scale to Full-Scale Wiper operation
INL: 1LSB (max)
DNL: 1LSB (max)
SPI Compatible Serial interface
Standby current: 1uA (max)
Wide Operating Voltage: 2.7V to 5.5V
Wide Bandwidth (-3dB) Operation: 280 MHz (typ.)
Extended temperature range: -40°C to +125°C

MCP41050 8-Bit Digital Potentiometer

See 0 Ratings & Reviews |

SKU: DAA044

₹ 158.12 (inc GST)
