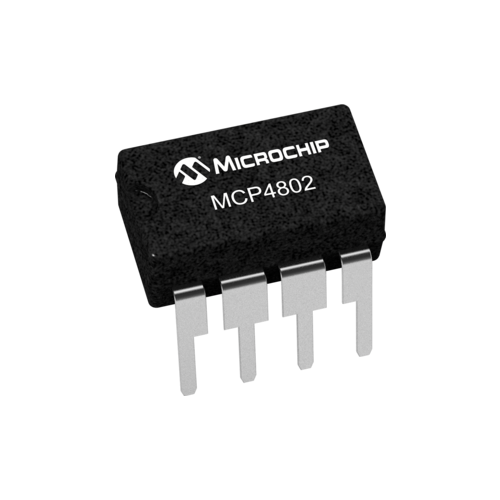

MCP4802 8-Bit DAC

Name: MCP4802 8-Bit DAC
Brand: Generic
SKU: DAA038
Price: 220.00 INR
Availability: OutOfStock
Rating: 3.5 (2 reviews)

MCP4802 is a dual channel 8-bit Digital-to-Analog converter (DAC) with internal voltage reference.

This device offers high accuracy and low power consumption, and is available in various packages. Communication with the device is accomplished via a simple serial interface using SPI protocols.

The MCP4802 DAC is a part of the MCP4802/MCP4812/MCP4822 product family, which are dual channel 8-bit/10-bit/12-bit DACs with internal voltage reference (VREF). These devices provide very high accuracy and low noise performance, and are suitable for consumer and industrial applications, such as set point control, offset adjustment and sensor calibration applications. The low power consumption and small package options make these devices very attractive for many portable and battery-powered applications. If one output is needed then the MCP4801/4811/4821 single channel product family can be used.

Features of MCP4802 8-Bit Digital-to-Analog Converter

8-bit Resolution
Dual Channel Voltage Output
2.7V to 5.5V Operation
Operating Current 330 µA (typ)
Internal Voltage Reference 2.048V
Selectable Unity or 2x Gain Output
INL ±0.125 LSB (typ)
DNL ±0.5 LSB (max)
Output Settling Time 4.5 µs
SPI Interface
8-pin PDIP, SOIC, MSOP and 2x3 DFN packages
Temperature Range -40°C to +125°C
AEC-Q100 Grade 1 quarlified

MCP4802 8-Bit DAC

3.5

See 2 Ratings & Reviews |

SKU: DAA038

₹ 259.60 (inc GST)

Description

MCP4802 8-Bit DAC

MCP4802 is a dual channel 8-bit Digital-to-Analog converter (DAC) with internal voltage reference.

This device offers high accuracy and low power consumption, and is available in various packages. Communication with the device is accomplished via a simple serial interface using SPI protocols.

Features of MCP4802 8-Bit Digital-to-Analog Converter

8-bit Resolution
Dual Channel Voltage Output
2.7V to 5.5V Operation
Operating Current 330 µA (typ)
Internal Voltage Reference 2.048V
Selectable Unity or 2x Gain Output
INL ±0.125 LSB (typ)
DNL ±0.5 LSB (max)
Output Settling Time 4.5 µs
SPI Interface
8-pin PDIP, SOIC, MSOP and 2x3 DFN packages
Temperature Range -40°C to +125°C
AEC-Q100 Grade 1 quarlified
