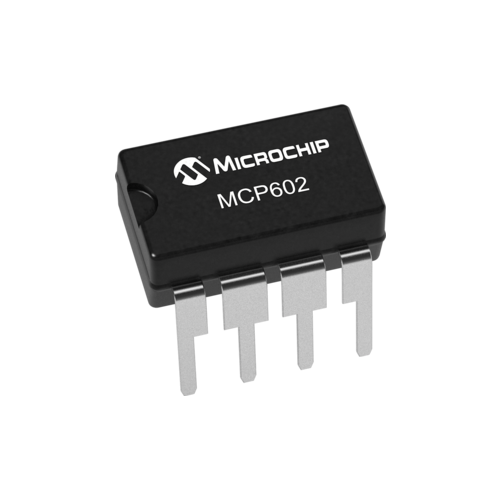

The MCP602 dual operational amplifier op-amp has a gain bandwidth product of 2.8 MHz with low typical operating current of 230 uA and an offset voltage that is less than 2 mV.
The MCP602 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail output swing. The MCP602 operates with a single supply voltage that can be as low as 2.7V, while drawing less than 325 of quiescent current per amplifier. The MCP602 op-amp is available in standard 8-lead PDIP, SOIC and TSSOP packages. This amplifier is ideal for industrial process control, low-power battery-operated devices, portable equipment, data acquisition equipment, test equipment and low-end audio applications.
Low Input Bias Current :1 pA (typ.)
Gain-Bandwidth Product : 2.8 MHz
Low Quiescent Current : 230 µA/amplifier (typical)
Low Input Offset Voltage : 2 mV (max.)
Unity Gain Stable
Rail to Rail Output
Extended Temperature Range
Temp. Range (°C) : -40°C to +125°C
Vos Max (µV) : 2000
# per Package : 2
Iq Typical (µA) : 230
Iq Max (µA) : 325
GBWP (kHz) : 2800
Operating Voltage Range (V) : 2.7 to 6.0
Device Description : Linear Op Amps
Input Voltage Noise Density (nV/rt(Hz)) : 29
PSRR Min (dB) : 80
CMRR Min (dB) : 75
Vos/Ta (uV/°C) : 2.5
