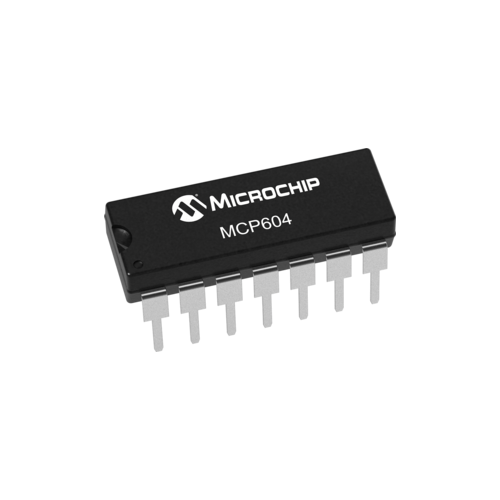

MCP604 Single Supply CMOS Op Amps

The MCP604 quad operational amplifier (op amp) has a gain bandwidth product of 2.8 MHz with low typical operating current of 230uA.

The MCP604 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail output swing. The MCP604 operates with a single supply voltage that can be as low as 2.7V, while drawing less than 325 of quiescent current per amplifier. MCP604 Opamp is available in standard 14-lead PDIP, SOIC and TSSOP packages. This amplifier is ideal for industrial process control, low-power battery-operated devices, portable equipment, data acquisition equipment, test equipment and low-end audio applications.

Features of MCP604 Single Supply CMOS Op Amp

• Single-Supply : 2.7V to 6.0V

• Rail-to-Rail Output

• Input Range Includes Ground

• Gain Bandwidth Product : 2.8 MHz (typical)

• Unity-Gain Stable

• Low Quiescent Current : 230 µA/amplifier (typical)

• Chip Select (CS) : MCP603 only

• Temperature Ranges :

  • Industrial : -40°C to +85°C

  • Extended : -40°C to +125°C

Applications of MCP604 Single Supply CMOS Op Amp

• Portable Equipment

• A/D Converter Driver

• Photo Diode Pre-amp

• Analog Filters

• Data Acquisition

• Notebooks and PDAs

• Sensor Interface

Related Links

• Download MCP604 Op-Amp Datasheet
