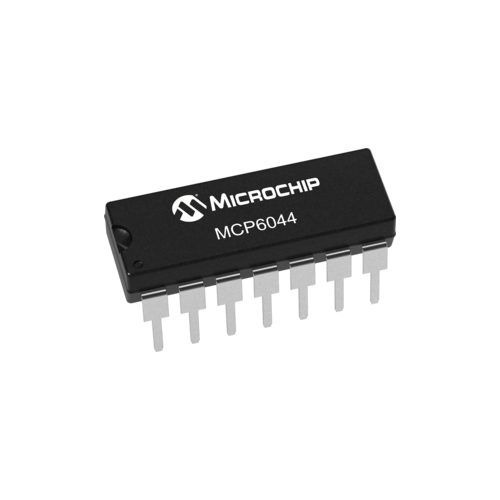

MCP6044 Rail-to-Rail Input/Output Op Amps

The MCP6044 quad operational amplifier (op amp) has a gain bandwidth product of 14 kHz with a low typical operating current of 600 nA and an offset voltage that is less than 3 mV.

The MCP6044 Opamp uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail output swing. The MCP6044 operates with a single supply voltage that can be as low as 1.4V, while drawing less than 1.0 of quiescent current per amplifier. The MCP6044 is available in standard 14-lead PDIP, SOIC and TSSOP packages. This amplifier is ideal for industrial process control, low-power battery-operated devices, portable equipment and wearable products.

Features of MCP6044 Rail-to-Rail Input/Output Op Amps

• Low Quiescent Current : 600 nA/amplifier (typical)

• Rail-to-Rail Input/Output

• Gain Bandwidth Product : 14 kHz (typical)

• Wide Supply Voltage Range : 1.4V to 6.0V

• Unity Gain Stable

• Available in Single, Dual, and Quad

• Chip Select (CS) with MCP6043

• Available in 5-lead and 6-lead SOT-23 Packages

• Temperature Ranges :

  • Industrial : -40°C to +85°C

  • Extended : -40°C to +125°C

Applications of MCP6044 Rail-to-Rail Input/Output Op Amps

• Toll Booth Tags

• Wearable Products

• Temperature Measurement

• Battery Powered
